Choosing the right diameter is one of the first decisions when purchasing a PVC layflat hose.
A hose that is too small may restrict water flow and increase pressure loss. A hose that is unnecessarily large may increase purchasing, storage, and handling costs.
For this reason, selecting a PVC layflat hose should not simply be a matter of choosing the same diameter as the pump outlet.
The actual application, required water flow, working pressure, transfer distance, and connection size should all be considered.
In this guide, we explain common PVC layflat hose sizes, how diameter affects water transfer, and how importers, distributors, farmers, contractors, and project buyers can select a suitable hose for their applications.
PVC Layflat Hose Size Chart
PVC layflat hose is available in a wide range of diameters for different water transfer and discharge applications.
The exact sizes and pressure ratings available depend on the manufacturer and hose construction.
Here is a general reference:
| Nominal Hose Size | Approx. Diameter | Common Applications |
|---|---|---|
| 1 inch | 25 mm | Small irrigation, water transfer |
| 1.5 inch | 38 mm | Irrigation, drainage |
| 2 inch | 51 mm | Agricultural irrigation, water discharge |
| 3 inch | 75/76 mm | Irrigation, construction dewatering |
| 4 inch | 102 mm | Large-volume water transfer |
| 6 inch | 152/153 mm | High-volume discharge |
| 8 inch | 200/203 mm | Large irrigation and drainage systems |
| 10 inch | 254/255 mm | Large-scale water transfer |
| 12 inch | 305 mm | High-volume water discharge |
Important: The table is a general size reference. Buyers should confirm the actual inside diameter, outside diameter, working pressure, wall construction, and available specifications with the manufacturer before placing an order.

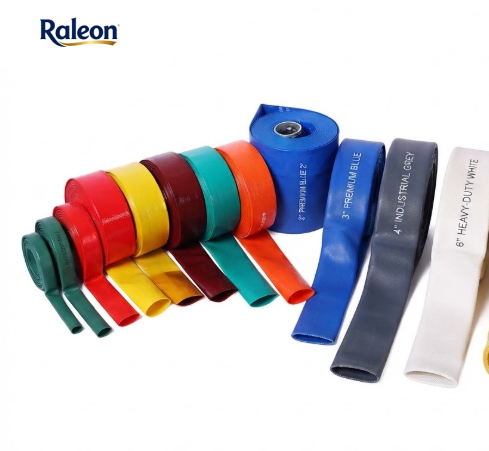

PVC layflat hose sizes from small to large diameters
What Does PVC Layflat Hose Size Mean?
When a buyer asks for a 2-inch PVC layflat hose, the “2 inch” normally refers to the nominal hose diameter.
For example:
1 inch ≈ 25 mm
1.5 inch ≈ 38 mm
2 inch ≈ 51 mm
3 inch ≈ 76 mm
4 inch ≈ 102 mm
6 inch ≈ 152 mm
8 inch ≈ 203 mm
10 inch ≈ 254 mm
However, nominal size should not be confused with an exact measured dimension.
Different manufacturers may have slightly different specifications, so professional buyers should always check the manufacturer’s size chart before ordering.
For large-volume international purchases, this is especially important because hose dimensions can affect compatibility with couplings, pumps, valves, and other equipment.

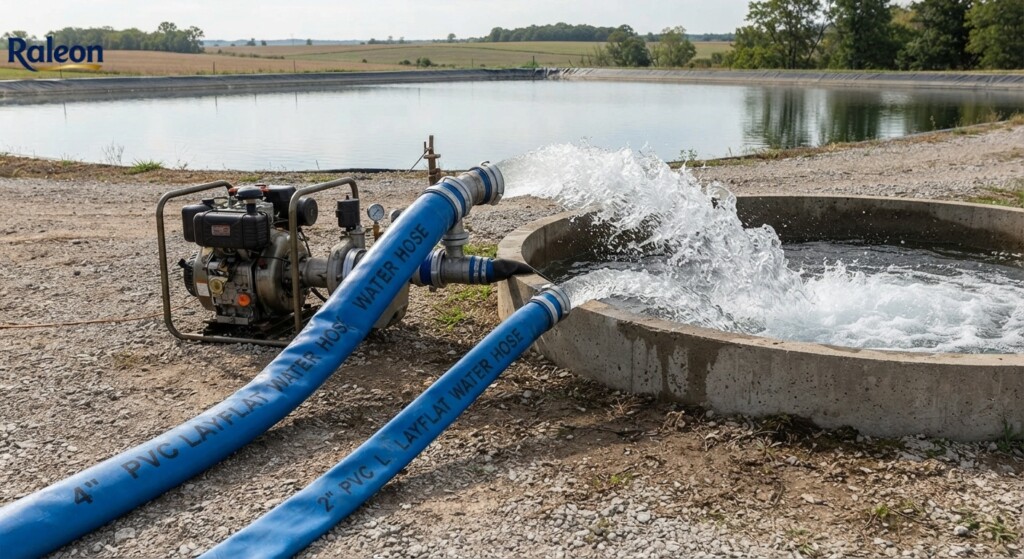

How Does Hose Diameter Affect Water Flow?
Hose diameter has a major effect on water transfer performance.
Generally, a larger diameter provides a larger flow passage, which can allow more water to move through the hose under suitable system conditions.
For example, a 4-inch hose and a 2-inch hose should not be expected to provide the same flow performance simply because they are made from the same PVC material.
However, choosing a larger hose does not automatically mean a better system.
The appropriate diameter depends on the required flow rate and the pumping system..
————————————————————————————————————————————————————————————————————————
Why Choosing the Right Diameter Matters
Imagine a pump needs to transfer a large volume of water over a considerable distance.
If the hose diameter is too small, the system may experience greater resistance to flow.
This can result in:
On the other hand, selecting an unnecessarily large hose may increase:
The objective is therefore not to choose the largest possible PVC layflat hose.
The objective is to choose a diameter that matches the system.
————————————————————————————————————————————————————————————————————————
How to Choose the Right PVC Layflat Hose Size
There are several important factors to consider.
1. Check the Required Water Flow
Start with the amount of water that needs to be transferred.
For example, agricultural irrigation systems may have very different requirements from construction dewatering systems.
If you know the required flow rate, provide this information to your hose supplier.
A professional manufacturer can then help you determine a suitable hose diameter.
2. Check the Pump Outlet Size
The pump connection is another important factor.
If the pump outlet is 3 inches, a 3-inch hose may be a logical starting point.
However, the pump outlet size should not be the only consideration.
You should also check:
The complete system should be considered before finalizing the hose size.
3. Consider the Transfer Distance
Distance matters.
A short water transfer application may have different requirements from a system transferring water over hundreds of meters.
For long-distance applications, pressure loss and flow requirements become increasingly important.
This is one reason why a buyer should provide the supplier with as much application information as possible.
For example:
“We need a 4-inch PVC layflat hose for agricultural irrigation. The pump flow rate is X, the working pressure is X, and the transfer distance is X meters.”
This information is much more useful than simply saying:
“Please quote 4-inch layflat hose.”
————————————————————————————————————————————————————————————————————————
PVC Layflat Hose Size for Irrigation
Agricultural irrigation is one of the most common applications for PVC layflat hose.
Different farms and irrigation systems may require different hose diameters.
Smaller irrigation systems
Smaller diameters may be suitable for:
Medium irrigation systems
Medium-size PVC layflat hoses can be used for:
Large irrigation systems
Larger diameters are generally considered when the system requires high-volume water transfer.
These may include:
The exact diameter should be determined according to the pump and required flow rate rather than farm size alone.

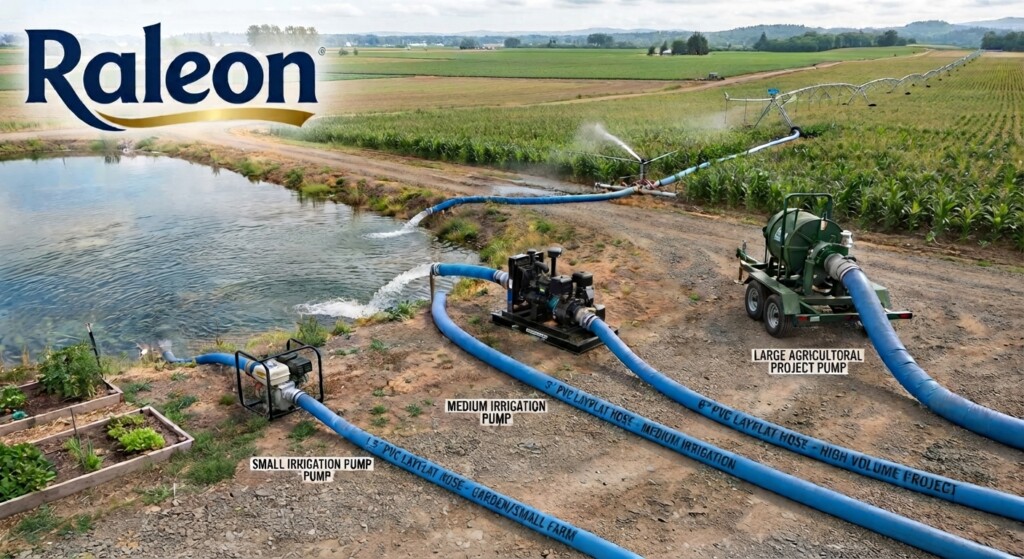

PVC layflat hose used for agricultural irrigation
————————————————————————————————————————————————————————————————————————

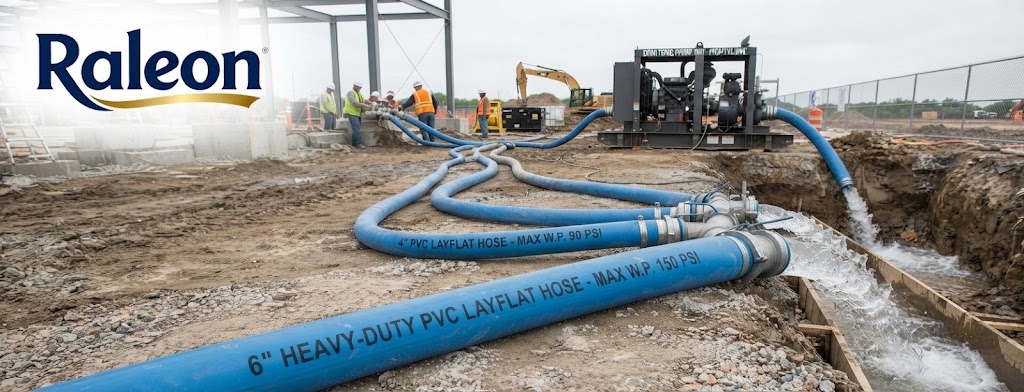

PVC Layflat Hose Size for Construction Dewatering
Construction projects often require temporary water discharge.
PVC layflat hose can be used to move water away from:
For construction dewatering, buyers should consider both diameter and working pressure.
A larger diameter may be useful when high volumes of water need to be discharged.
However, if the pump produces significant pressure, the hose’s pressure rating must also be suitable.
Diameter and pressure rating are two different specifications.
A large-diameter hose does not automatically have a high pressure rating.
————————————————————————————————————————————————————————————————————————
PVC Layflat Hose Size for Industrial Water Transfer
Industrial applications can have very different requirements.
For example, a factory may need a hose for:
Before selecting the hose, confirm:
1.Fluid being transferred
2.Flow rate
3.Working pressure
4.Temperature
5.Hose diameter
6.Transfer distance
7.Connection requirements
For applications involving chemicals, oil, fuel, abrasive materials, or other specialized fluids, do not assume that a standard PVC water layflat hose is suitable.
Always confirm chemical compatibility with the manufacturer.
————————————————————————————————————————————————————————————————————————
PVC Layflat Hose Size vs Working Pressure
One of the most common misunderstandings is assuming that hose diameter determines pressure rating.
It does not.
For example, 2-inch PVC layflat hoses may have different working pressures because their construction can differ.
Pressure performance can be affected by:
Therefore, when requesting a quotation, buyers should specify both:
Hose diameter + required working pressure
For example:
3-inch PVC layflat hose, 6 Bar working pressure
rather than simply:
3-inch PVC layflat hose
If you are unsure about the pressure requirement, provide the pump information and application details to the manufacturer.
————————————————————————————————————————————————————————————————————————
Does a Larger PVC Layflat Hose Always Mean Better Performance?
No.
A larger hose can carry a greater volume of water under suitable system conditions, but it may not be the most appropriate choice for every application.
For example, using an unnecessarily large hose may create additional costs without providing a meaningful benefit for a low-flow system.
Similarly, choosing a hose that is too small may create unnecessary flow resistance.
The right size is the one that matches the actual requirements of the system.
How to Choose PVC Layflat Hose for Different Applications
Here is a simple reference:
| Application | Possible Size Range | Main Considerations |
|---|---|---|
| Small irrigation | 1–2 inch | Flow, pump connection |
| Agricultural irrigation | 2–6 inch | Flow rate, pressure, distance |
| Construction drainage | 2–8 inch | Water volume, pump pressure |
| Large water discharge | 4–10 inch+ | High flow, transfer distance |
| Industrial water transfer | Application dependent | Fluid, pressure, temperature |
| Large agricultural projects | 4–10 inch+ | Pump capacity and system design |
These ranges are for general guidance rather than fixed rules.
Actual requirements should always be confirmed before ordering.
————————————————————————————————————————————————————————————————————————

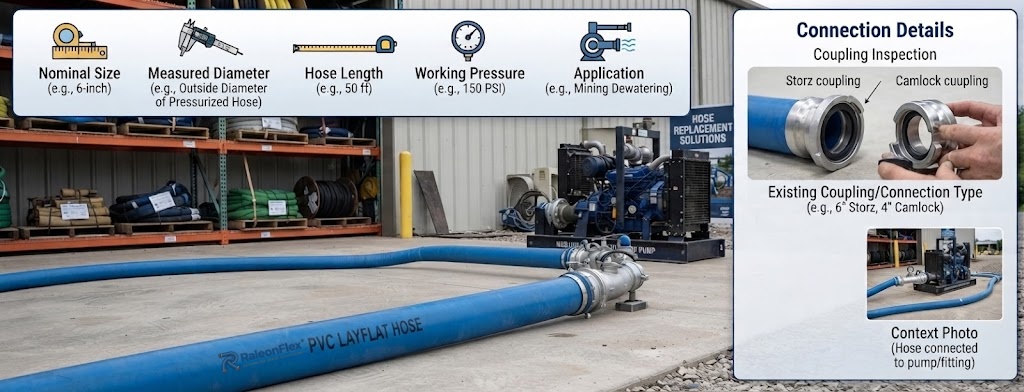

How to Measure PVC Layflat Hose
If you already have a hose and want to replace it, measuring the existing hose can help.
However, because layflat hose is flexible, measuring an empty hose may not always give you the information required to identify the exact product specification.
When contacting a manufacturer, provide as much information as possible:
If possible, a photograph showing the hose connected to the pump or fitting can also help the supplier understand the application.
————————————————————————————————————————————————————————————————————————
What Information Should You Give a PVC Hose Manufacturer?
For importers and distributors, sending complete information at the quotation stage can save time.
Instead of sending only:
“Please quote PVC layflat hose.”
You can provide:
Product：PVC Layflat Hose
Size：2 inch / 3 inch / 4 inch
Working Pressure：Required pressure rating
Length：For example, 50 m or 100 m per roll
Application：Agricultural irrigation / water discharge / construction
Color：Blue / orange / other customized color
Printing：Private label or customized hose printing
Packaging：Standard export packaging or customized packaging
This allows the manufacturer to prepare a more accurate quotation.
————————————————————————————————————————————————————————————————————————

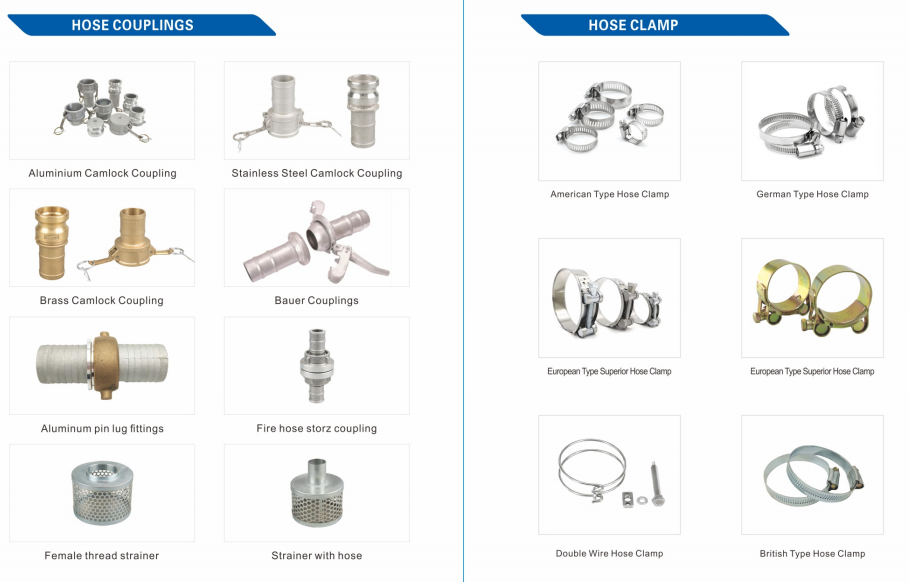

What About Couplings and Connections?
The hose itself is only one part of a water transfer system.
Depending on the application, you may also need:
The coupling size should match the hose and equipment.
For distributors, ordering hoses and compatible accessories from the same supplier can also simplify sourcing and packaging.
————————————————————————————————————————————————————————————————————————
How Should Distributors Choose PVC Layflat Hose Sizes?
For wholesalers and distributors, product selection is slightly different from selecting a hose for one individual project.
A distributor may need several popular sizes to serve different customer groups.
Before creating a product range, consider:
Target Market
Different markets may have different popular sizes.
Main Applications
Determine whether your customers mainly purchase hoses for:
Pressure Requirements
Your product range may need multiple pressure options.
Packaging
Retail customers may require different packaging from project buyers.
Private Label
If you sell under your own brand, consider:
Raleonflex supports OEM and ODM requirements for international customers.
————————————————————————————————————————————————————————————————————————
Why Buying the Correct Size Can Reduce Costs
Choosing the correct hose diameter is not simply a technical decision.
It can also affect the total cost of your water transfer system.
An unsuitable hose can lead to:
For distributors, incorrect specifications can also lead to inventory problems.
For example, if a distributor imports a large quantity of a size that is not suitable for its target market, the inventory may remain in the warehouse longer than expected.
Understanding the local market before placing a large order can therefore be important.
————————————————————————————————————————————————————————————————————————
A professional manufacturer should do more than provide a price list.
The supplier should be able to help you understand:
For larger orders, it is also useful to request samples before mass production.
A sample allows the buyer to check:
Clear communication before production can prevent many problems later.
————————————————————————————————————————————————————————————————————————
Raleonflex is the hose brand of Weifang Raleon Plastic Co., Ltd.
Founded in 2012, we manufacture PVC hose solutions for agriculture, construction, water transfer, and industrial applications.
Our manufacturing facility covers approximately 25,000 m², and our products are exported to customers in 100+ countries.
We support OEM and ODM projects, including customized:
For buyers who are not sure which PVC layflat hose size is suitable, our team can review the application requirements and help identify a suitable specification.
————————————————————————————————————————————————————————————————————————
Frequently Asked Questions
What are the common PVC layflat hose sizes?
Common sizes include 1, 1.5, 2, 3, 4, 6, 8, 10 inches and larger sizes, depending on the manufacturer and application.
How do I choose the right PVC layflat hose diameter?
Consider the required water flow, pump outlet, working pressure, transfer distance, and application. The hose should be selected as part of the complete water transfer system.
Is a 2-inch layflat hose suitable for irrigation?
It can be suitable for certain irrigation systems, but the correct size depends on the required flow rate, pump, pressure, and transfer distance.
Does a larger hose have higher working pressure?
Not necessarily. Diameter and pressure rating are separate specifications. The pressure performance depends on the hose construction, reinforcement, material, and manufacturing process.
Can PVC layflat hose be customized?
Yes. Raleonflex supports OEM and ODM projects, including customized colors, printing, packaging, and private-label requirements.
What information should I provide when requesting a quotation?
Provide the hose diameter, working pressure, length, application, color, printing requirements, packaging requirements, and estimated quantity. Pump and flow information is also helpful.
Can I buy PVC layflat hose with couplings?
Yes. Depending on the project, hoses can be supplied together with suitable couplings and accessories.
Can PVC layflat hose be used for high-volume water discharge?
Yes, larger-diameter PVC layflat hoses can be used for high-volume water transfer and discharge when the hose specification is suitable for the system.
————————————————————————————————————————————————————————————————————————
Conclusion
Choosing the right PVC layflat hose size is an important part of designing an efficient water transfer system.
The correct diameter depends on more than the hose connection size.
Before purchasing, consider:
For importers and distributors, product specifications, packaging, printing, and OEM requirements should also be confirmed before placing an order.
If you are unsure which PVC layflat hose size you need, provide your pump information and application details to a professional manufacturer. This can help you select a suitable product rather than simply choosing the cheapest or largest hose.
————————————————————————————————————————————————————————————————————————
Get a Free Quote for PVC Layflat Hose
Looking for a reliable PVC Layflat Hose Manufacturer in China?
Raleonflex provides PVC layflat hose solutions for agriculture, irrigation, construction, water discharge, and industrial applications.
Why work with Raleonflex?
✓ Founded in 2012
✓ 25,000 m² Manufacturing Facility
✓ Exported to 100+ Countries
✓ OEM & ODM Supported
✓ Customized Colors & Printing
✓ Private Label Packaging Available
📧 Email: sales@raleon.cn
📱 WhatsApp: +86 19353281962
Get a Free Quote
Contact us with your required size, pressure, length, application, and quantity. Our team will help you find a suitable PVC layflat hose solution.
Copyright © 2025 Weifang Raleon Plastic Co., Ltd. All Rights Reserved.
