Color: Green, Yellow, Blue, or customized.
Branding: OEM printing and surface customization available.
Length: Standard 30m rolls or customized lengths.
Material: 100% virgin PVC + polyester fiber reinforcement.

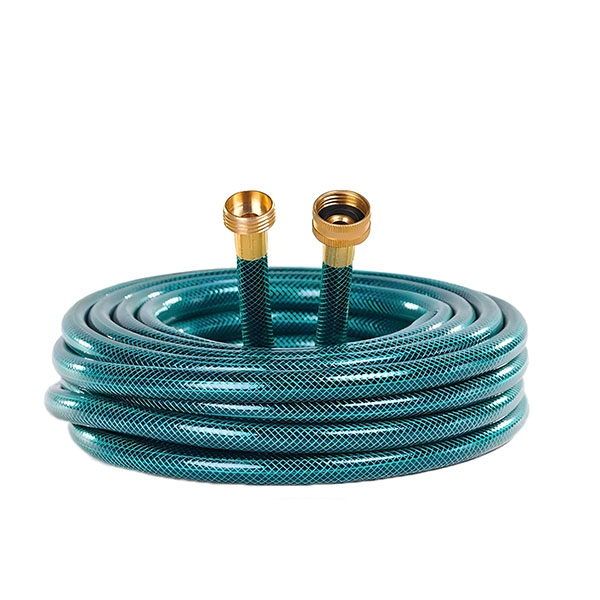

Compatible fittings: Brass connectors or 4-piece plastic quick connectors available.
MOQ: 500 KGS per model
Lead Time: 10-15 days after deposit
Packaging: Wrapped coils, custom labels, barcodes, non-fumigation pallets
Payment Terms: T/T, L/C, or negotiable
Free samples available for quality testing
Categories: PVC Garden Hose


| Specification: | ||||||||||
| INNER DIAMETER | THICKNESS | OUTER DIAMATER | WORKING PRESSURE | BURST PRESSURE | WEIGHT | ROLL | HS CODE | |||
| INCH | MM | MM | MM | BAR | PSI | BAR | PSI | G/M | M | |
| 1/2″ | 12 | 1.7 | 15.4 | 5 | 75 | 15 | 225 | 90 | 30 | 39173900 |
| 1/2″ | 12 | 2.5 | 17 | 8 | 120 | 24 | 360 | 153 | 30 | 39173900 |
| 1/2″ | 12 | 2 | 16 | 7 | 101 | 21 | 303 | 120 | 30 | 39173900 |
| 5/8″ | 15 | 2 | 19 | 5 | 75 | 15 | 225 | 145 | 30 | 39173900 |
| 5/8″ | 15 | 2.5 | 20 | 6 | 90 | 18 | 270 | 185 | 30 | 39173900 |
| 3/4″ | 19 | 2 | 23 | 4 | 60 | 12 | 180 | 180 | 30 | 39173900 |
| 3/4″ | 19 | 2.5 | 24 | 5 | 75 | 15 | 225 | 230 | 30 | 39173900 |
| 1″ | 25 | 2 | 29 | 3 | 50 | 9 | 150 | 230 | 30 | 39173900 |
| 1″ | 25 | 2.5 | 30 | 4 | 60 | 12 | 180 | 290 | 30 | 39173900 |
