Weifang Raleon Plastic Co., Ltd.
Wall thickness: 0.4–0.9mm
Reinforcement: Standard steel wire / copper-plated / stainless steel wire
Surface color: Transparent, light blue, green, amber, or customized
Temperature and hardness customization available
Optional food-grade PU material (FDA compliant)
MOQ: 200 meters per size
Delivery Time: 10–20 days
Packing: Plastic film + carton or woven bag
Certificates: RoHS / REACH / FDA (optional)
Payment Terms: T/T, L/C, Western Union
Categories: PU Duct&Vacuum Hose

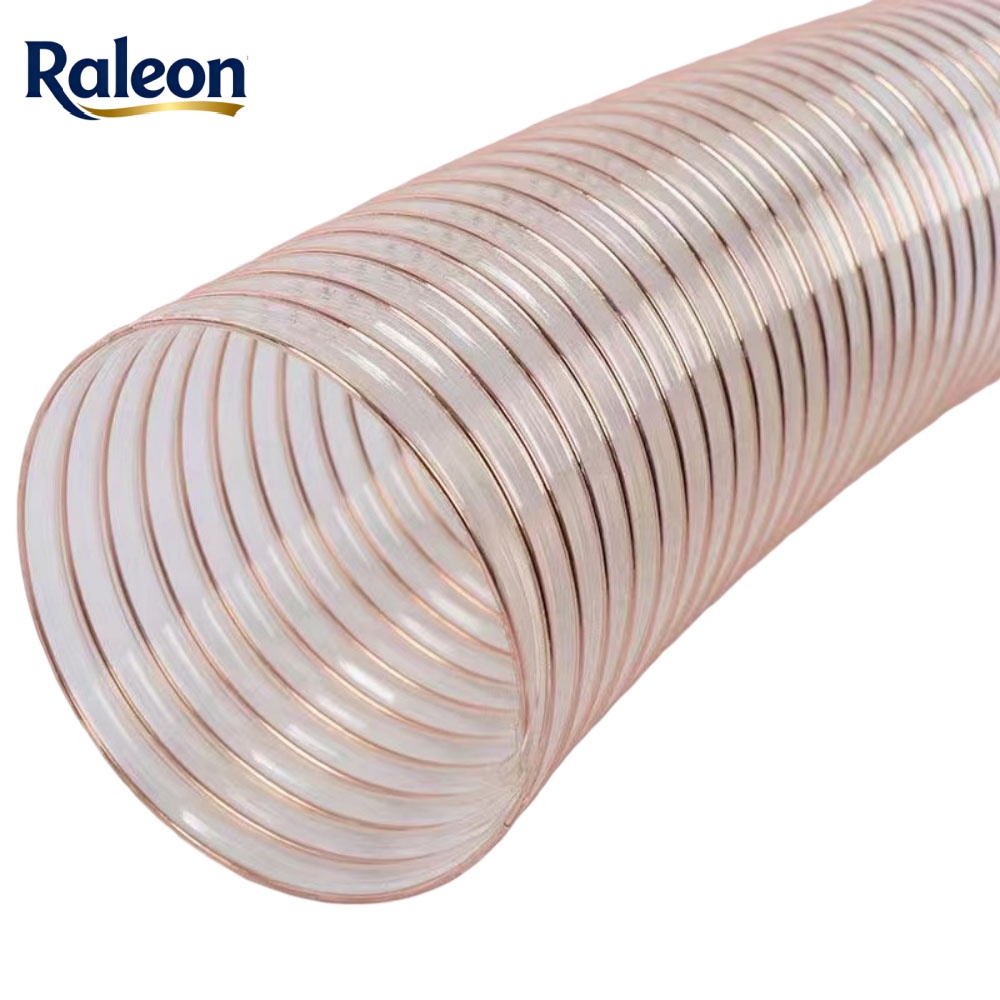

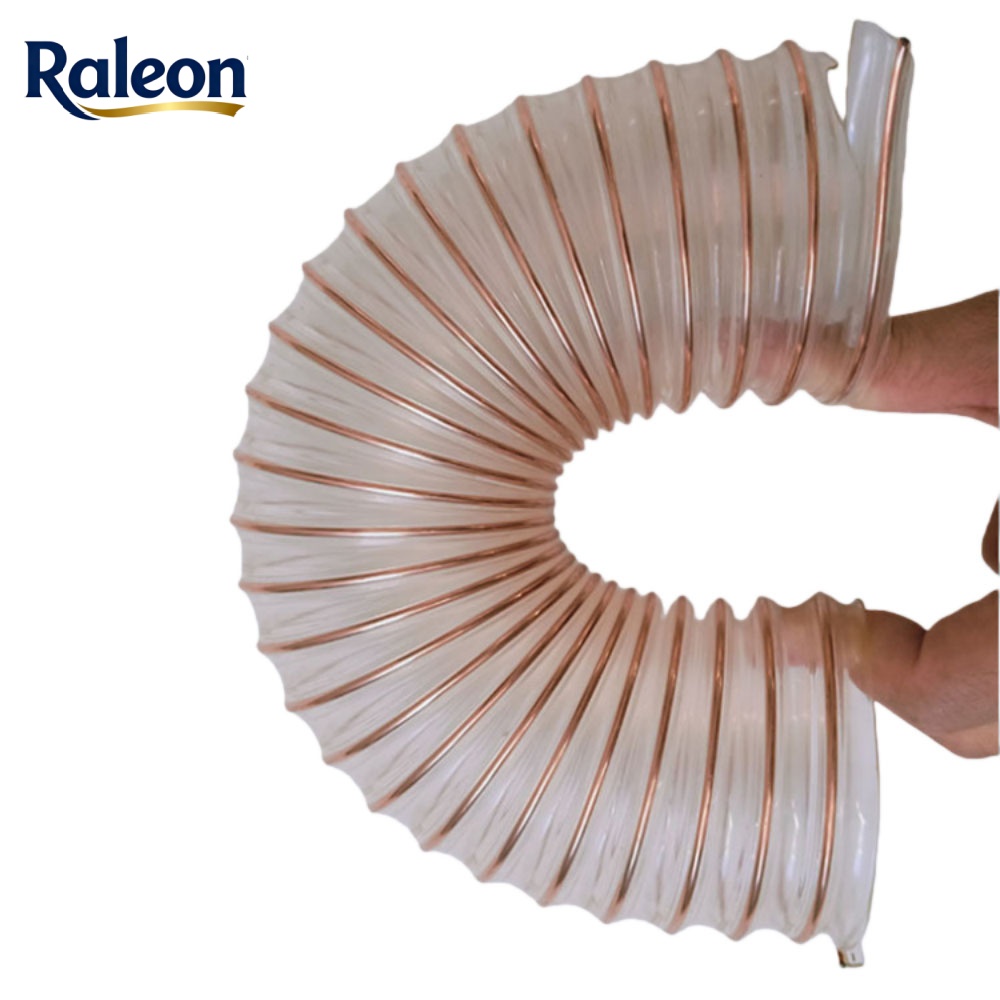

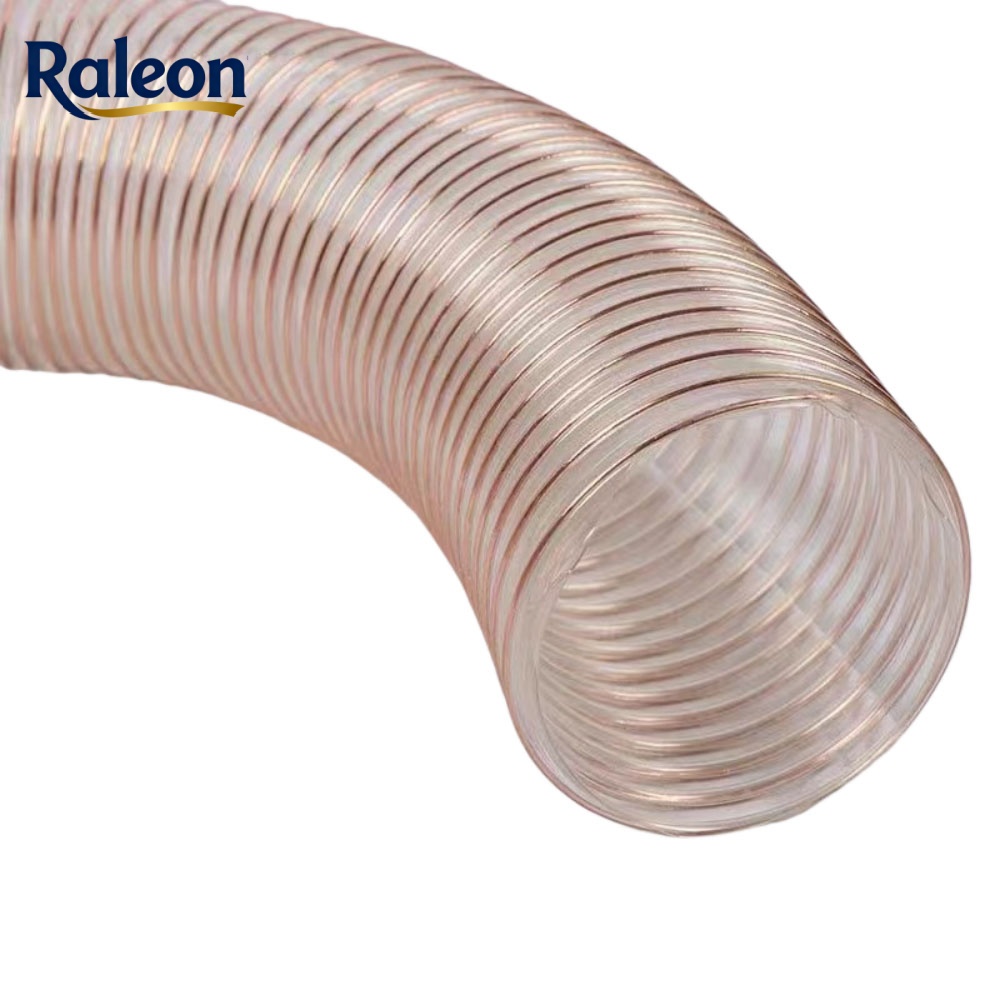

The PU Steel Wire Duct Hose is made of high-quality ester-based polyurethane, reinforced with a copper-plated spring steel wire helix. It offers excellent flexibility, transparency, abrasion resistance, and static conductivity, making it ideal for dust collection, air ventilation, powder or granulate transport, and industrial vacuum systems.
This ducting hose features a smooth interior for optimized airflow, while the clear wall allows visual monitoring of material flow. Its temperature resistance (-40℃ to +90℃) and food-safe material (optional FDA grade) make it suitable for diverse industries including woodworking, plastic, chemical, pharmaceutical, and food processing.
Transparent wall for easy flow inspection
High wear resistance and long service life
Copper plated steel wire for excellent flexibility and static discharge
Oil, fuel, and chemical resistant
Tear-proof and small bending radius
Halogen-free and plasticizer-free
RoHS compliant, environmentally safe
Temperature range: -40℃ (-104℉) to +90℃ (+150℉)
| Item Code | I.D (mm) | Thickness (mm) | Bending Radius (mm) | W.P (Bar) | Vacuum Pressure (Bar) | Length (m) |
| PUDH025 | 25 | 0.4 / 0.6 | 38 | 0.75 / 1.6 | 0.45 / 0.45 | 10 |
| PUDH038 | 38 | 0.4 / 0.6 | 54 | 0.7 / 1.6 | 0.35 / 0.4 | 10 |
| PUDH051 | 51 | 0.4 / 0.6 | 69 | 0.5 / 1.4 | 0.3 / 0.3 | 10 |
| PUDH063 | 63 | 0.4 / 0.6 | 85 | 0.5 / 1.2 | 0.25 / 0.25 | 10 |
| PUDH076 | 76 | 0.4 / 0.6 | 102 | 0.4 / 1.1 | 0.2 / 0.23 | 10 |
| PUDH090 | 90 | 0.4 / 0.6 | 119 | 0.35 / 0.8 | 0.14 / 0.18 | 10 |
| PUDH102 | 102 | 0.4 / 0.6 | 166 | 0.3 / 0.75 | 0.14 / 0.15 | 10 |
| PUDH152 | 152 | 0.4 / 0.6 | 241 | 0.15 / 0.3 | 0.08 / 0.12 | 10 |
| PUDH203 | 203 | 0.4 / 0.6 | 318 | 0.1 / 0.22 | 0.06 / 0.1 | 10 |
| PUDH305 | 305 | 0.4 / 0.6 | 471 | 0.04 / 0.15 | 0.03 / 0.06 | 10 |
