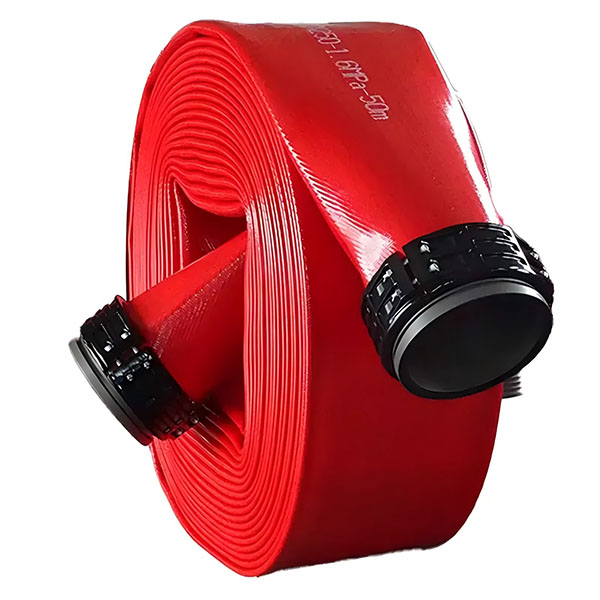

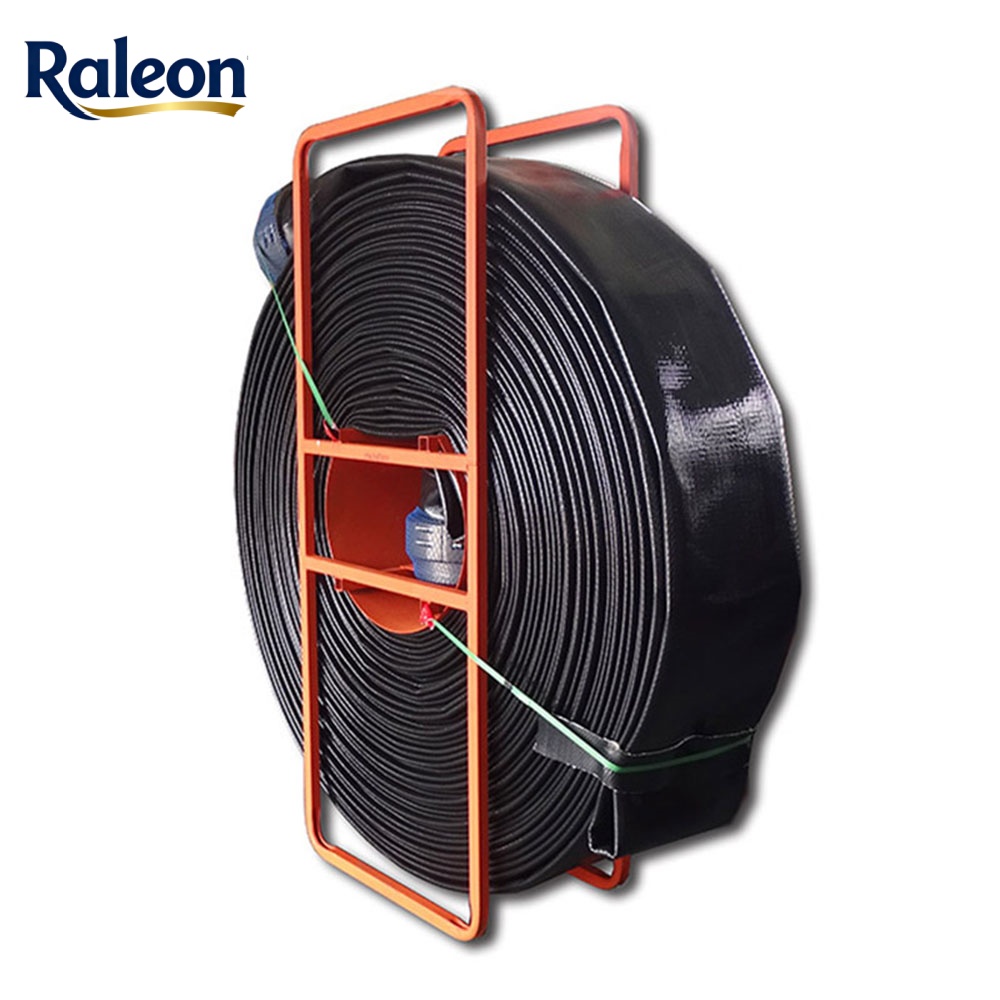

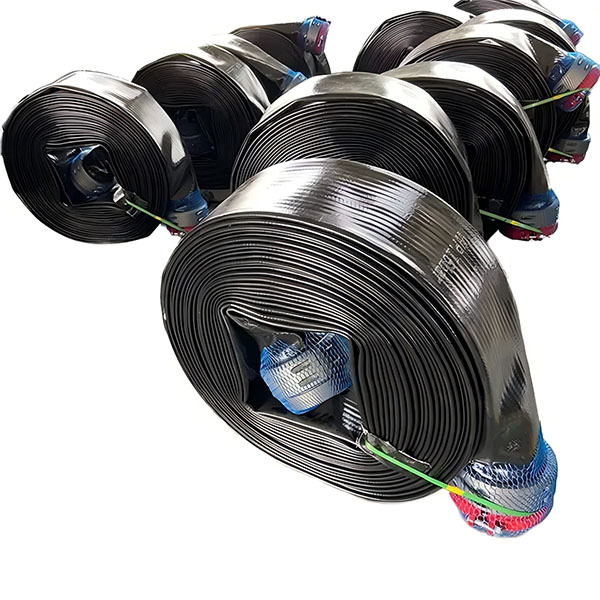

TPU LAYFLAT HOSE

Custom diameter, wall thickness, and working pressure.
OEM color, logo printing, and packaging available.
Various coupling options: aluminum, stainless steel, or quick camlock.
Optional hose assemblies with clamps and connectors.

MOQ: 500 meters
Packing: Woven bag / Wooden reel / Customized export packing
Delivery Time: 15–25 days after deposit
Payment Terms: T/T, L/C
Export Markets: Europe, South America, Australia, Middle East, Southeast Asia

Categories:

Contact Now

The TPU Layflat Hose is made from high-strength thermoplastic polyurethane (TPU) material using an advanced extrusion-through-the-weave process. This unique technology firmly bonds the TPU cover and lining to a circular woven polyester reinforcement, resulting in superior strength, flexibility, and durability.

Compared to traditional rubber hoses, TPU hoses are lighter, more compact, and more resistant to wear, tearing, and chemicals, making them ideal for agricultural irrigation, slurry transport, and firefighting. The tightly woven polyester jacket minimizes hose elongation and prevents snaking during use, ensuring stable performance even under high pressure.

● Made from high-quality TPU with superior wear, gouge, and tear resistance.
● Extrusion-through-the-weave process ensures strong bonding and long service life.
● Lightweight and easy to handle compared to rubber hoses.
● Excellent resistance to abrasion, chemicals, acids, and alkalis.
● High tensile strength minimizes elongation and prevents snaking.
● Suitable for long-distance water or slurry delivery.
● UV resistant and adaptable to extreme working conditions.
● Working temperature: -40℃ to +75℃.

Item Specification
Material TPU (Thermoplastic Polyurethane)
Reinforcement Circular woven high tenacity polyester yarn
Manufacturing Process Extrusion through the weave
Size Range 1” – 12” (25mm – 305mm)
Working Pressure 5 – 20 bar
Burst Pressure 15 – 60 bar
Working Temperature -40℃ to +75℃
Color Blue / Red / Black / Custom
Length per Roll Up to 200m (customizable)
Application Agriculture irrigation, slurry transport, firefighting, mining, and dewatering
