● Color: Transparent, Blue, Green, Yellow, or Custom
● Branding: OEM logo printing available
● Length: 10m–100m rolls or customized
● Packaging: Wrapped coils, custom labeling, barcodes, non-fumigation pallets
● Material: 100% virgin PVC
● Sample: Free samples available
MOQ: 500 KGS per model
Lead Time: 20 days after deposit
Payment Terms: T/T or L/C
Port of Loading: Qingdao / Shanghai / Ningbo
Sample: Free samples available
Categories: PVC Clear Hose

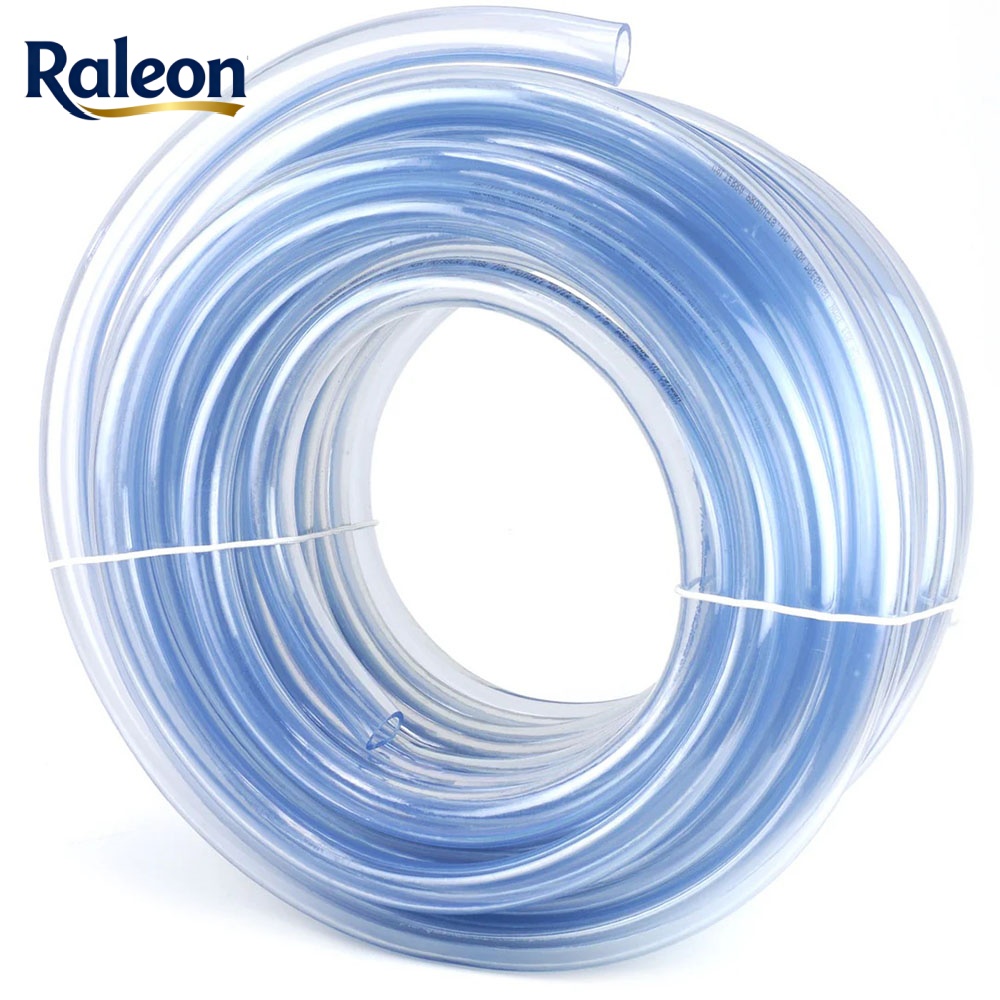

The PVC Transparent Hose is made from high-quality flexible PVC material, featuring excellent transparency, allowing easy monitoring of fluid flow.
It is lightweight, flexible, non-toxic, odorless, and resistant to UV rays, heat, and abrasion, suitable for conveying water, oil, and gas under normal working conditions in factories, farms, ships, buildings, and households.
The hose’s smooth inner and outer surfaces ensure low flow resistance, while its lightweight and flexible design make it easy to handle and install.
Custom colors and OEM logo printing are available to meet different market demands.
Free samples are available for testing and evaluation.

● High transparency for easy fluid visibility.
● Smooth inner and outer walls ensure smooth flow.
● Flexible, lightweight, non-toxic, and odorless.
● Anti-UV, heat-resistant, and abrasion-resistant.
● Suitable for normal working pressure applications.
● Working Temperature: -5℃ to +65℃.
● Custom color and OEM printing available.
● Free samples available.

| Specification: | ||||||||||
| INNER DIAMETER | THICKNESS | OUTER DIAMATER | WORKING PRESSURE | BURST PRESSURE | WEIGHT | ROLL | HS CODE | |||
| INCH | MM | MM | MM | BAR | PSI | BAR | PSI | G/M | M | |
| 1/8″ | 3 | 1 | 5 | 2 | 30 | 6 | 90 | 16 | 100 | 39173200 |
| 5/32″ | 4 | 1 | 6 | 2 | 30 | 6 | 90 | 20 | 100 | 39173200 |
| 3/16″ | 5 | 1 | 7 | 2 | 30 | 6 | 90 | 25 | 100 | 39173200 |
| 1/4″ | 6 | 1 | 8 | 1.5 | 22 | 5 | 75 | 28.5 | 100 | 39173200 |
| 5/16″ | 8 | 1 | 10 | 1.5 | 22 | 5 | 75 | 37 | 100 | 39173200 |
| 3/8″ | 10 | 1 | 12 | 1.5 | 22 | 4 | 60 | 45 | 100 | 39173200 |
| 1/2″ | 12 | 1.5 | 15 | 1.5 | 22 | 4 | 60 | 83 | 50 | 39173200 |
| 5/8″ | 15 | 1.5 | 18 | 1 | 14 | 3 | 42 | 101 | 50 | 39173200 |
| 3/4″ | 19 | 1.5 | 22 | 1 | 14 | 3 | 42 | 125 | 50 | 39173200 |
| 1″ | 25 | 2 | 29 | 1 | 14 | 3 | 42 | 220 | 50 | 39173200 |
| 1-1/4″ | 32 | 3 | 38 | 1 | 14 | 3 | 42 | 430 | 40 | 39173200 |
| 1-1/2″ | 38 | 3 | 44 | 1 | 14 | 3 | 42 | 500 | 40 | 39173200 |
| 2″ | 50 | 4 | 58 | 1 | 14 | 2.5 | 36 | 880 | 40 | 39173200 |
