Weifang Raleon Plastic Co., Ltd.
Color: Red, Blue, Yellow, Transparent, or customized color
Layers: Available in 3-layer and 5-layer construction
Branding: OEM logo printing available
Packaging: Wrapped coils, customized labeling, barcodes, non-fumigation pallets
MOQ: 500 KGS per model
Lead Time: 10-20 days after deposit
Payment Terms: T/T or L/C
Sample Policy: Free samples available
Categories: PVC Air Hose

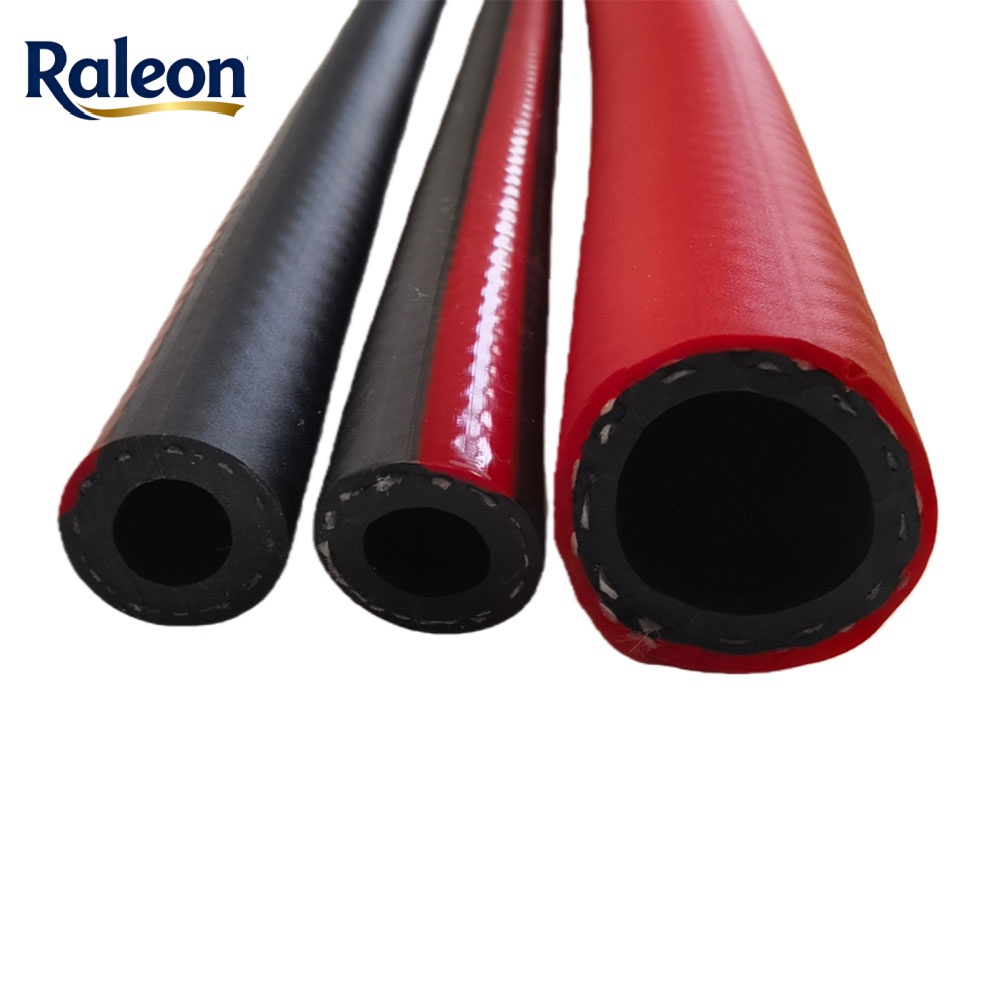

The PVC & Rubber Multipurpose Hose (3 & 5 Layers) combines the flexibility of rubber and the lightweight properties of PVC. It features a smooth inner and outer surface, providing excellent airflow and easy handling. This hose remains elastic, durable, and twist-free even in low temperatures, making it ideal for air pumps, compressors, and pneumatic systems.
Hybrid PVC + Rubber construction for better flexibility and durability
Smooth inner & outer surface ensures low flow resistance
Lightweight, soft, and easy to move, no twisting under cold conditions
Anti-UV, anti-abrasion, available in bright colors
Working Temperature: -5°C to +65°C
Applications: Ideal for air compressors, air pumps, and pneumatic tools
| Inner Diameter (Inch) | Inner Diameter (mm) | Thickness (mm) | Outer Diameter (mm) | Working Pressure (Bar) | Working Pressure (PSI) | Burst Pressure (Bar) | Burst Pressure (PSI) | Weight (g/m) | Roll (m) | HS Code |
| 1/4″ | 6 | 3 | 12 | 20 | 290 | 70 | 1000 | 110 | 100 | 39173900 |
| 5/16″ | 8 | 3 | 14 | 20 | 290 | 60 | 870 | 135 | 100 | 39173900 |
| 3/8″ | 10 | 3 | 16 | 20 | 290 | 60 | 870 | 160 | 100 | 39173900 |
| 1/2″ | 12 | 3.5 | 19 | 20 | 290 | 60 | 870 | 225 | 50 | 39173900 |
| 5/8″ | 16 | 4.5 | 25 | 20 | 290 | 60 | 870 | 380 | 50 | 39173900 |
| 3/4″ | 19 | 4.75 | 28.5 | 20 | 290 | 60 | 870 | 460 | 50 | 39173900 |
| 1″ | 25 | 4.75 | 34.5 | 15 | 215 | 45 | 645 | 580 | 50 | 39173900 |
| 1-1/4″ | 32 | 6 | 44 | 15 | 215 | 45 | 645 | 940 | 40 | 39173900 |
| 1-1/2″ | 38 | 6 | 50 | 15 | 215 | 40 | 645 | 1085 | 40 | 39173900 |
| 2″ | 50 | 7 | 64 | 15 | 215 | 30 | 435 | 1640 | 40 | 39173900 |
