Weifang Raleon Plastic Co., Ltd.
Color: Blue, Red, Yellow, Transparent, or Custom color available
Branding: OEM logo printing supported
Packaging: Wrapped coils, customized labels, barcodes, non-fumigation pallets
MOQ: 500 KGS per model
Lead Time:10- 20 days after deposit
Payment Terms: T/T or L/C
Sample Policy: Free samples available
Categories: PVC Air Hose

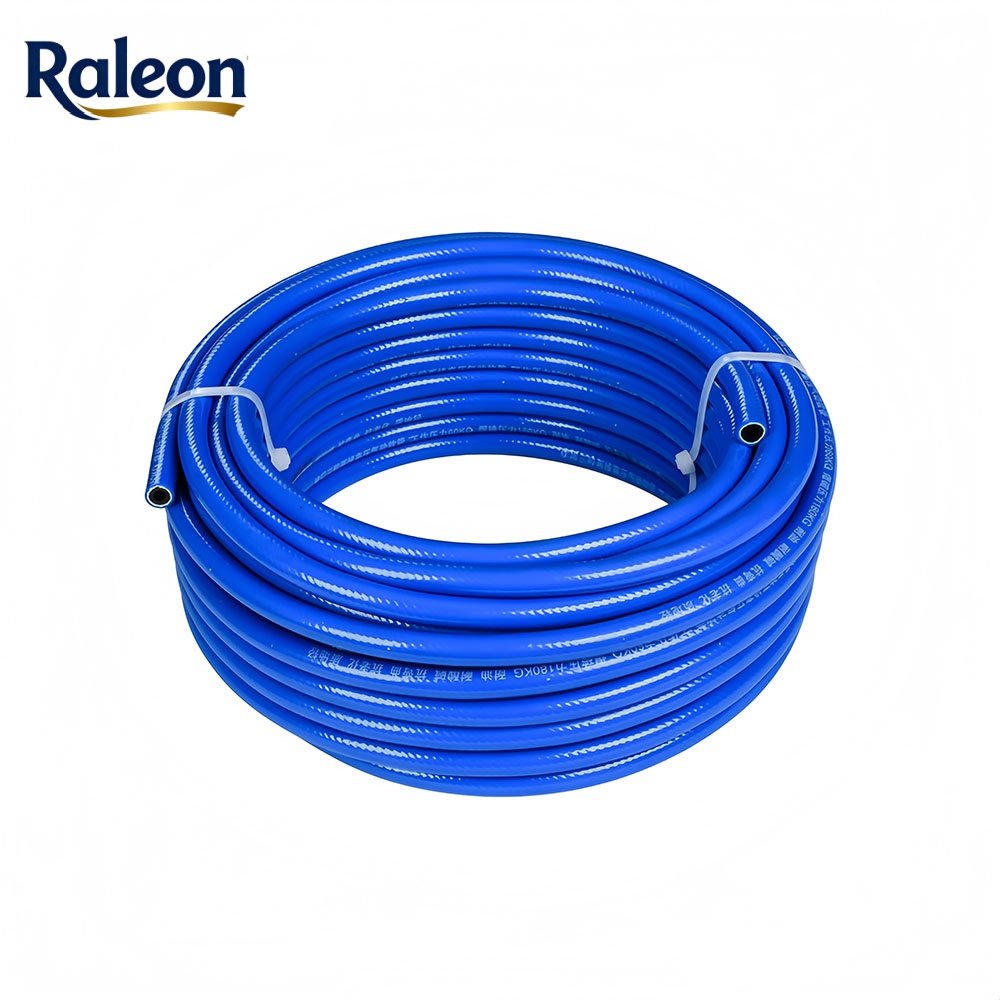

The 5 Layers PVC Air Hose is designed for high-pressure air transmission and industrial pneumatic applications. Made of premium PVC and polyester reinforcement, it features a five-layer construction that ensures superior strength, durability, and flexibility. With excellent anti-UV, anti-abrasion, and chemical resistance, it performs reliably in air compressors, gas station equipment, nail guns, automatic machinery, and firefighting systems.
Five-layer reinforced structure for high pressure and long service life
Smooth inner and outer surface, ensuring consistent airflow
Durable against climate and weather, excellent flexibility
Anti-UV, anti-abrasion, anti-chemical, passed ROHS & PAHS tests
Working Temperature: -5°C to +65°C
Applications: Ideal for pneumatic tools, compressors, auto machines, gas stations, and firefighting
| Inner Diameter (Inch) | Inner Diameter (mm) | Thickness (mm) | Outer Diameter (mm) | Working Pressure (Bar) | Working Pressure (PSI) | Burst Pressure (Bar) | Burst Pressure (PSI) | Weight (g/m) | Roll (m) | HS Code |
| 1/4″ | 6 | 3 | 12 | 40 | 580 | 160 | 2320 | 110 | 100 | 39173900 |
| 5/16″ | 8 | 3.5 | 15 | 40 | 580 | 150 | 2170 | 165 | 100 | 39173900 |
| 5/16″ | 8 | 4 | 16 | 60 | 870 | 195 | 2820 | 200 | 100 | 39173900 |
| 3/8″ | 10 | 3 | 16 | 40 | 580 | 135 | 1960 | 160 | 50 | 39173900 |
| 3/8″ | 10 | 4 | 18 | 60 | 870 | 190 | 2760 | 230 | 50 | 39173900 |
| 1/2″ | 12 | 3.5 | 19 | 40 | 580 | 145 | 2100 | 225 | 50 | 39173900 |
| 1/2″ | 12 | 4 | 20 | 60 | 870 | 195 | 2830 | 265 | 50 | 39173900 |
| 5/8″ | 16 | 5 | 26 | 30 | 430 | 85 | 1290 | 430 | 50 | 39173900 |
| 3/4″ | 19 | 5 | 29 | 25 | 360 | 75 | 1080 | 490 | 50 | 39173900 |
| 1″ | 25 | 5 | 35 | 25 | 360 | 60 | 870 | 610 | 50 | 39173900 |
