Weifang Raleon Plastic Co., Ltd.
Color: Blue, Red, Yellow, Transparent, or Custom color
Branding: OEM logo printing available
Packaging: Wrapped coils, custom labels, barcodes, non-fumigation pallets
MOQ: 500 KGS per model
Lead Time: 10-20 days after deposit
Payment Terms: T/T or L/C
Sample Policy: Free samples available
Categories: PVC Air Hose

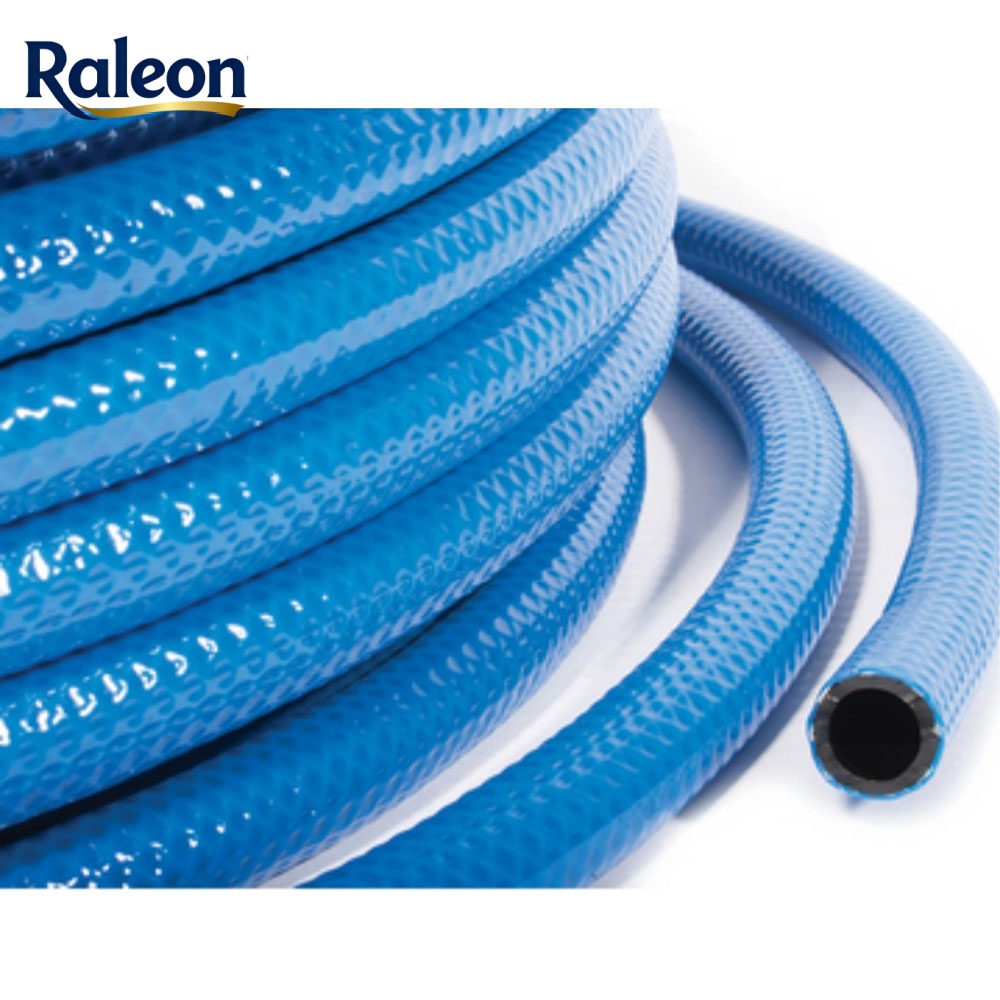

The 3 Layers PVC Air Hose is made from high-quality PVC material with reinforced polyester fiber and double-layer outer coating, providing excellent durability, flexibility, and pressure resistance. It features anti-UV, anti-abrasion, and anti-chemical properties, making it ideal for air tools, pneumatic equipment, gas station devices, and fire-fighting applications.
Three-layer structure: enhanced strength and longer service life
Smooth inner and outer surface, ensuring steady air flow and easy cleaning
Lightweight, flexible, non-toxic, convenient for frequent use
Anti-UV, anti-abrasion, and anti-chemical, passed ROHS & PAHS tests
Working Temperature: -5°C to +65°C
Applications: pneumatic tools, gas stations, air compressors, nail guns, automatic machines, fire-fighting
| Inner Diameter (Inch) | Inner Diameter (mm) | Thickness (mm) | Outer Diameter (mm) | Working Pressure (Bar) | Working Pressure (PSI) | Burst Pressure (Bar) | Burst Pressure (PSI) | Weight (g/m) | Roll (m) | HS Code |
| 1/4″ | 6 | 3 | 12 | 20 | 290 | 70 | 1000 | 110 | 100 | 39173900 |
| 5/16″ | 8 | 3 | 14 | 20 | 290 | 60 | 870 | 135 | 100 | 39173900 |
| 3/8″ | 10 | 3 | 16 | 20 | 290 | 60 | 870 | 160 | 100 | 39173900 |
| 1/2″ | 12 | 3.5 | 19 | 20 | 290 | 60 | 870 | 225 | 50 | 39173900 |
| 5/8″ | 16 | 4.5 | 25 | 20 | 290 | 60 | 870 | 380 | 50 | 39173900 |
| 3/4″ | 19 | 4.75 | 28.5 | 20 | 290 | 60 | 870 | 460 | 50 | 39173900 |
| 1″ | 25 | 4.75 | 34.5 | 15 | 215 | 45 | 645 | 580 | 50 | 39173900 |
| 1-1/4″ | 32 | 6 | 44 | 15 | 215 | 45 | 645 | 940 | 40 | 39173900 |
| 1-1/2″ | 38 | 6 | 50 | 15 | 215 | 40 | 645 | 1085 | 40 | 39173900 |
| 2″ | 50 | 7 | 64 | 15 | 215 | 30 | 435 | 1640 | 40 | 39173900 |
