Weifang Raleon Plastic Co., Ltd.
Available in various colors and sizes
Can customize wall thickness, length, and printing
OEM branding and packaging available
Free sample offered (freight collect)
MOQ: 500 meters
Packing: Transparent film + woven bag
Delivery Time: 15–25 days after deposit
Payment Terms: T/T, L/C
Export Markets: Southeast Asia, South America, Middle East, Europe
Categories: PVC Suction Hose

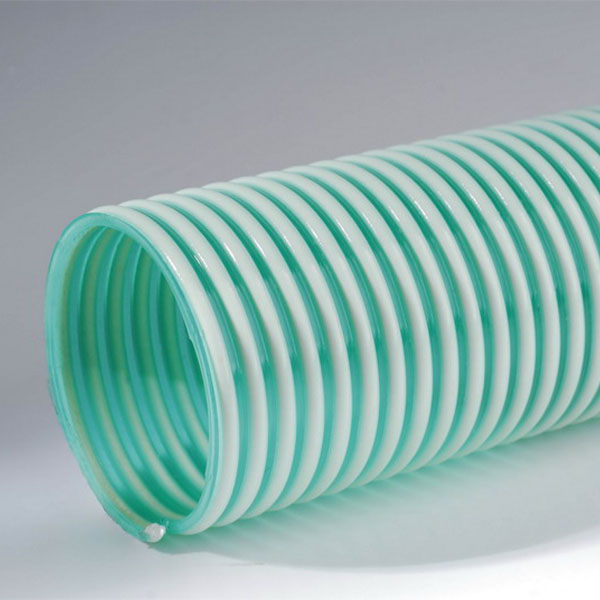

The Light Duty PVC Suction Hose is made from high-quality flexible PVC material with rigid PVC spiral reinforcement (ribbed) for enhanced strength and durability. It features smooth inner and outer walls for low flow resistance, and excellent flexibility for easy handling. This hose is lightweight, corrosion-resistant, and transparent, allowing easy monitoring of fluid flow.
It is ideal for agricultural irrigation, industrial pumping, water transfer, and negative pressure applications when used with water pumps.
● Smooth inner and outer surface, low fluid resistance
● Lightweight and highly flexible, easy to handle
● Transparent construction for flow visibility
● Excellent corrosion and weather resistance
● Small bending radius, high strength
● Working temperature: -5℃ to +65℃
| Specification: | ||||||||||
| INNER DIAMETER | THICKNESS | OUTER DIAMATER | WORKING PRESSURE | BURST PRESSURE | WEIGHT | ROLL | HS CODE | |||
| INCH | MM | MM | MM | BAR | PSI | BAR | PSI | G/M | M | |
| 3/4″ | 19 | 2 | 23 | 6 | 90 | 18 | 270 | 230 | 30 | 39173900 |
| 1″ | 25 | 2 | 29 | 6 | 90 | 18 | 270 | 290 | 30 | 39173900 |
| 1-1/4″ | 32 | 2 | 36 | 6 | 90 | 18 | 270 | 350 | 30 | 39173900 |
| 1-1/4″ | 32 | 3 | 38 | 6 | 90 | 18 | 270 | 400 | 30 | 39173900 |
| 1-1/2″ | 38 | 3 | 44 | 6 | 90 | 18 | 270 | 500 | 30 | 39173900 |
| 1-1/2″ | 38 | 4 | 46 | 6 | 90 | 18 | 270 | 650 | 30 | 39173900 |
| 2″ | 50 | 2 | 54 | 5 | 75 | 15 | 225 | 550 | 30 | 39173900 |
| 2″ | 50 | 3 | 56 | 5 | 75 | 15 | 225 | 700 | 30 | 39173900 |
| 2-1/2″ | 63 | 3 | 69 | 4 | 60 | 12 | 180 | 880 | 30 | 39173900 |
| 2-1/2″ | 63 | 4 | 71 | 4 | 60 | 12 | 180 | 1170 | 30 | 39173900 |
| 3″ | 75 | 3 | 81 | 3 | 44 | 9 | 132 | 1160 | 30 | 39173900 |
| 3″ | 75 | 4 | 83 | 3 | 44 | 9 | 132 | 1300 | 30 | 39173900 |
| 4″ | 100 | 4 | 108 | 3 | 44 | 9 | 132 | 1950 | 30 | 39173900 |
| 4″ | 100 | 5 | 110 | 3 | 44 | 9 | 132 | 2300 | 30 | 39173900 |
| 5″ | 125 | 5 | 135 | 3 | 44 | 9 | 132 | 3000 | 20 | 39173900 |
| 5″ | 125 | 6 | 137 | 3 | 44 | 9 | 132 | 3300 | 20 | 39173900 |
| 6″ | 152 | 6 | 164 | 2 | 30 | 6 | 90 | 4500 | 10 | 39173900 |
| 6″ | 152 | 7 | 166 | 2 | 30 | 6 | 90 | 5500 | 10 | 39173900 |
| 8″ | 200 | 7 | 214 | 2 | 30 | 6 | 90 | 6300 | 10 | 39173900 |
