Weifang Raleon Plastic Co., Ltd.
Color: Yellow, Blue, Red, Green, or customized.
Branding: OEM logo printing and customized surface marking.
Length: Standard 50m / 100m rolls or customized sizes.
Material: 100% new PVC + high-strength polyester fiber reinforcement.
MOQ: 500 KGS per model
Lead Time: 10-15 days after deposit
Packaging: Wrapped coils, customized labels, barcodes, non-fumigation pallets
Payment Terms: T/T, L/C, or negotiable
Free samples available for testing
Categories: PVC Spray Hose

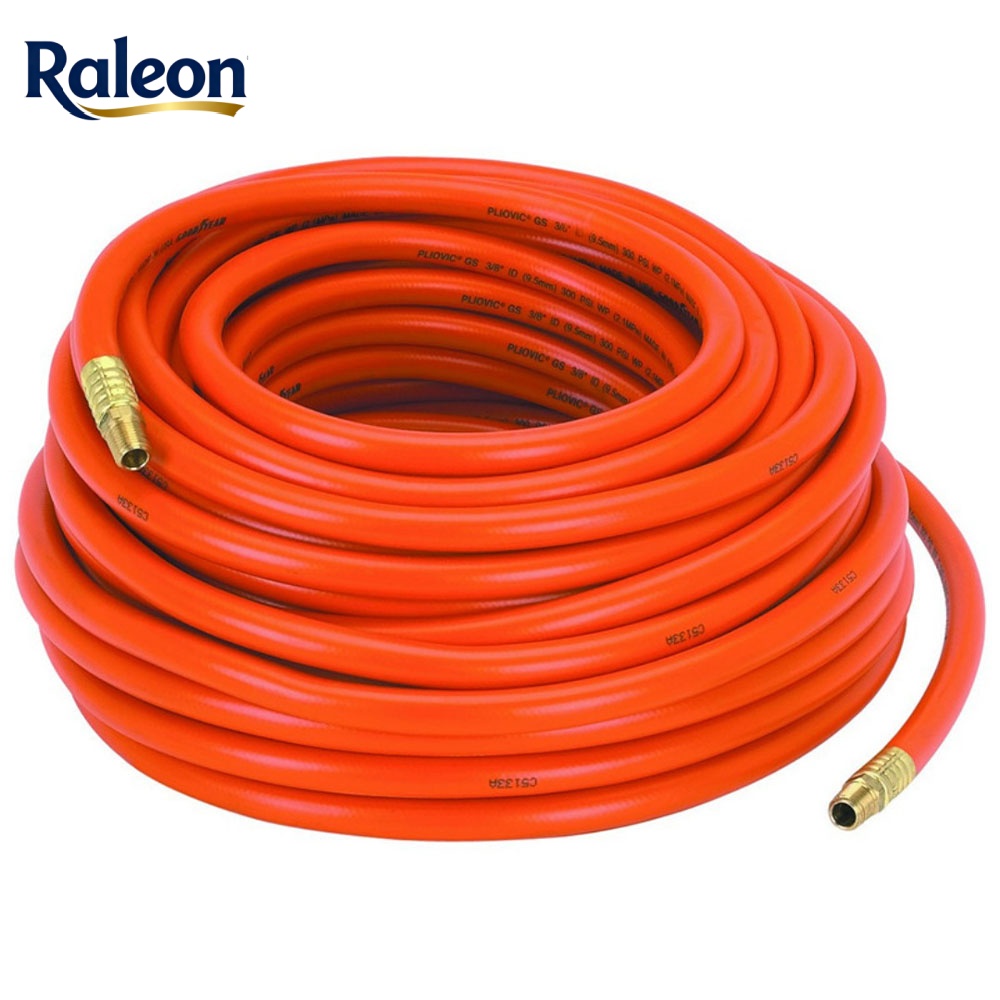

The Heavy Duty PVC Spray Hose (5 Layers) is engineered with premium PVC materials and high-strength polyester fiber reinforcement, using advanced one-layer winding and one-layer weaving technology. This design ensures superior flexibility, enhanced adhesion, and high working pressure up to 80 Bar while maintaining lightweight performance. The hose is anti-UV, chemical resistant, and ideal for agricultural spraying, pesticide application, and high-pressure water delivery.
5-layer reinforced structure — one-layer winding + one-layer weaving for higher strength and bonding.
Ultra high pressure resistance — up to 80 Bar (1160 PSI) working pressure.
Lightweight & flexible — easier handling and transport during spraying work.
Anti-UV, anti-abrasion, and chemical resistant — ideal for outdoor and harsh environments.
Smooth inner and outer wall — ensures excellent flow and long service life.
Working Temperature: -5℃ to +65℃.
Free samples available!
| INNER DIAMETER | THICKNESS | OUTER DIAMETER | WORKING PRESSURE | BURST PRESSURE | WEIGHT (g/m) | ROLL (m) | HS CODE |
| 1/4″ (6mm) | 3 | 12 | 80Bar / 1160Psi | 240Bar / 3480Psi | 110 | 100 | 39173900 |
| 5/16″ (8mm) | 3 | 14 | 80Bar / 1160Psi | 240Bar / 3480Psi | 140 | 100 | 39173900 |
| 3/8″ (10mm) | 3.5 | 17 | 80Bar / 1160Psi | 240Bar / 3480Psi | 195 | 100 | 39173900 |
| 1/2″ (12mm) | 4 | 20 | 80Bar / 1160Psi | 240Bar / 3480Psi | 270 | 50 | 39173900 |
