Weifang Raleon Plastic Co., Ltd.
✔ Diameter and length customization available
✔ Color and logo printing upon request
✔ Optional pressure ratings: 6bar / 8bar / 10bar / 12bar
✔ Packaging: rolls, woven bags, or cartons
✔ OEM & ODM support
MOQ: 1000 meters (negotiable)
Payment Terms: T/T, L/C, Western Union
Delivery Time: 10–25 days after deposit
Port of Loading: Qingdao / Shanghai / Ningbo
Sample: Available upon request
Daily Output: 10,000 meters/day
Categories: PVC Lay Flat Hose

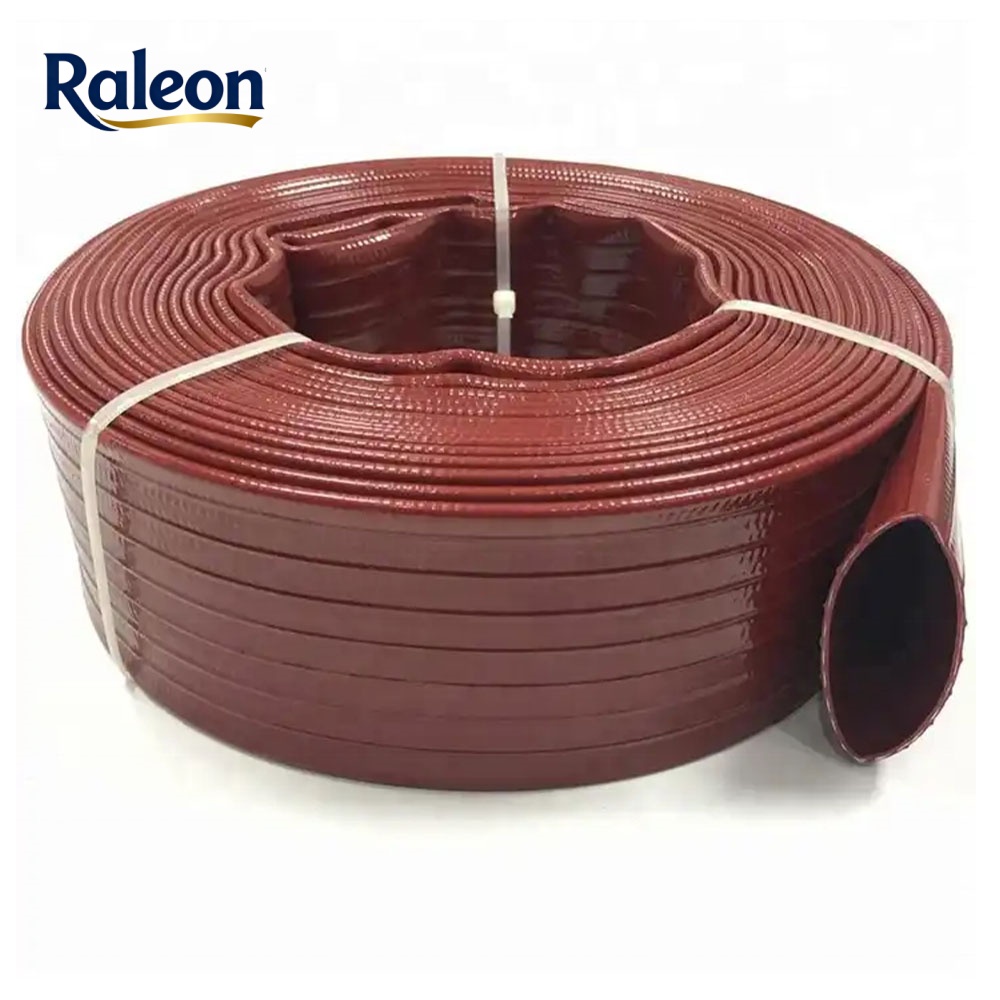

The Heavy Duty PVC Layflat Hose is made from premium-grade PVC material through an advanced one-step molding process. It is designed for high-pressure discharge applications, featuring excellent flexibility and durability. With working pressure up to 8–10 bar, this hose is ideal for agricultural irrigation, construction site drainage, industrial liquid transfer, mining dewatering, and marine services.
The hose offers outstanding resistance to abrasion, UV radiation, and aging. Its environmental-grade composition meets REACH standards, ensuring both safety and eco-friendliness.
● Heavy-duty construction with high burst pressure resistance
● Excellent abrasion, weather, and UV resistance
● Environmental grade formula meets REACH standards
● Flexible, smooth surface, easy to coil and store
● Suitable for discharge of water, sludge, and liquids in multiple industries
● Working temperature: -5°C to +65°C
| Specification: | ||||||||||
| INNER DIAMETER | THICKNESS | OUTER DIAMATER | WORKING PRESSURE | BURST PRESSURE | WEIGHT | ROLL | HS CODE | |||
| INCH | MM | MM | MM | BAR | PSI | BAR | PSI | G/M | M | |
| 3/4″ | 20 | 1.55 | 23.1 | 10 | 150 | 30 | 450 | 140 | 50 | 39173900 |
| 1″ | 25 | 1.85 | 28.7 | 10 | 150 | 30 | 450 | 200 | 50 | 39173900 |
| 1-1/4″ | 32 | 1.5 | 35 | 10 | 150 | 30 | 450 | 210 | 50 | 39173900 |
| 1-1/2″ | 38 | 1.7 | 41.4 | 10 | 150 | 30 | 450 | 290 | 50 | 39173900 |
| 1-1/2″ | 40 | 1.9 | 43.8 | 10 | 150 | 30 | 450 | 300 | 50 | 39173900 |
| 1-4/3″ | 45 | 2 | 49 | 10 | 150 | 30 | 450 | 350 | 50 | 39173900 |
| 2″ | 51 | 1.55 | 54.1 | 8 | 120 | 24 | 360 | 350 | 50 | 39173900 |
| 2″ | 51 | 1.8 | 54.6 | 10 | 150 | 30 | 450 | 420 | 50 | 39173900 |
| 2-1/2″ | 64 | 1.9 | 67.8 | 10 | 150 | 30 | 450 | 700 | 50 | 39173900 |
| 3″ | 76 | 2 | 80 | 8 | 120 | 24 | 360 | 660 | 50 | 39173900 |
| 3″ | 76 | 2.55 | 81.1 | 10 | 150 | 30 | 450 | 850 | 50 | 39173900 |
| 4″ | 103 | 2.25 | 107.5 | 8 | 120 | 24 | 360 | 1000 | 50 | 39173900 |
| 4″ | 103 | 2.7 | 108.4 | 10 | 150 | 30 | 450 | 1200 | 50 | 39173900 |
| 6″ | 153 | 3 | 159 | 8 | 120 | 24 | 360 | 2000 | 50 | 39173900 |
| 8″ | 203 | 3.2 | 209.4 | 6 | 90 | 18 | 270 | 2800 | 50 | 39173900 |
