● Color: Transparent, Blue, Yellow, Green, or Customized
● Length: 30m / 50m / 100m per roll
● Printing: OEM logo and custom markings available
● Material: PVC + High Strength Polyester Fiber
● Packaging: Roll wrapped with film or carton box
● MOQ: 3000 meters
● Delivery Time: 15–25 days after deposit
● Port: Qingdao / Shanghai / Ningbo
● Payment Terms: T/T, L/C
● Sample: Free samples available
● HS Code: 39173900
Categories: PVC Fiber Hose

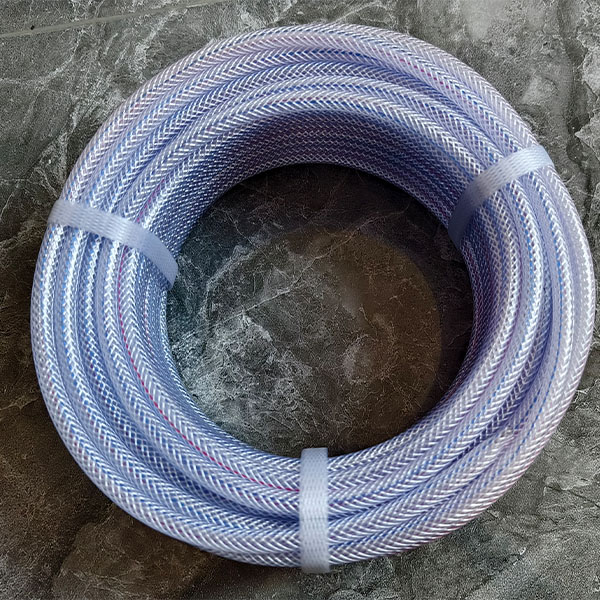

The Heavy Duty PVC Fiber Reinforced Hose is made of high-strength polyester fiber and premium PVC compound, offering excellent pressure resistance, anti-abrasion, and UV protection. Its smooth inner and outer surface ensures easy flow and cleaning. Suitable for industrial and agricultural applications, it is ideal for supplying water, oil, gas, and conveying solid particles in mining, engineering, and construction.

● Smooth inner and outer wall, ensuring high flow efficiency.
● Thick wall structure, providing high pressure and impact resistance.
● Anti-abrasion, anti-chemical, and anti-UV properties for outdoor use.
● Strong flexibility even under cold conditions.
● Transparent body allows visual flow inspection.
● Long service life and easy handling.
● Working Temperature: -5℃ to +65℃
● Applications: Suitable for agriculture, mining, construction, and industry.
| Specification: | ||||||||||
| INNER DIAMETER | THICKNESS | OUTER DIAMATER | WORKING PRESSURE | BURST PRESSURE | WEIGHT | ROLL | HS CODE | |||
| INCH | MM | MM | MM | BAR | PSI | BAR | PSI | G/M | M | |
| 13/64″ | 5 | 2.5 | 10 | 12 | 174 | 40 | 580 | 76 | 100 | 39173900 |
| 1/4″ | 6 | 2.5 | 11 | 12 | 174 | 36 | 522 | 87 | 100 | 39173900 |
| 5/16″ | 8 | 2.5 | 13 | 10 | 150 | 30 | 450 | 105 | 100 | 39173900 |
| 3/8″ | 10 | 2.5 | 15 | 10 | 150 | 30 | 450 | 130 | 100 | 39173900 |
| 1/2″ | 12 | 3 | 18 | 9 | 130 | 27 | 390 | 185 | 100 | 39173900 |
| 5/8″ | 16 | 3 | 22 | 8 | 120 | 24 | 360 | 230 | 50 | 39173900 |
| 3/4″ | 19 | 3 | 25 | 6 | 90 | 18 | 270 | 270 | 50 | 39173900 |
| 7/8″ | 22 | 3 | 28 | 5 | 75 | 15 | 225 | 305 | 50 | 39173900 |
| 1″ | 25 | 3 | 31 | 5 | 75 | 15 | 225 | 340 | 50 | 39173900 |
| 1-1/4″ | 32 | 4 | 40 | 4 | 60 | 12 | 180 | 590 | 40 | 39173900 |
| 1-1/2″ | 38 | 4 | 46 | 4 | 60 | 12 | 180 | 690 | 40 | 39173900 |
| 1-3/4″ | 45 | 5.5 | 56 | 4 | 60 | 12 | 180 | 1140 | 30 | 39173900 |
| 2″ | 50 | 6 | 62 | 4 | 60 | 12 | 180 | 1380 | 30 | 39173900 |
| 2-1/2″ | 64 | 7 | 78 | 4 | 60 | 12 | 180 | 2030 | 20 | 39173900 |
| 3″ | 76 | 8 | 92 | 4 | 60 | 12 | 180 | 2750 | 20 | 39173900 |
