Weifang Raleon Plastic Co., Ltd.
Available in customized colors, thickness, and pressure rating.
OEM logo printing and packaging available.
Can be matched with quick connectors, clamps, and hose fittings for one-stop solution.
MOQ: 1000 meters
Packing: Woven bag / Customized
Delivery Time: 15–25 days after deposit
Payment Terms: T/T, L/C, Western Union
Export Markets: Middle East, Africa, Southeast Asia, South America
Categories: PVC Lay Flat Hose

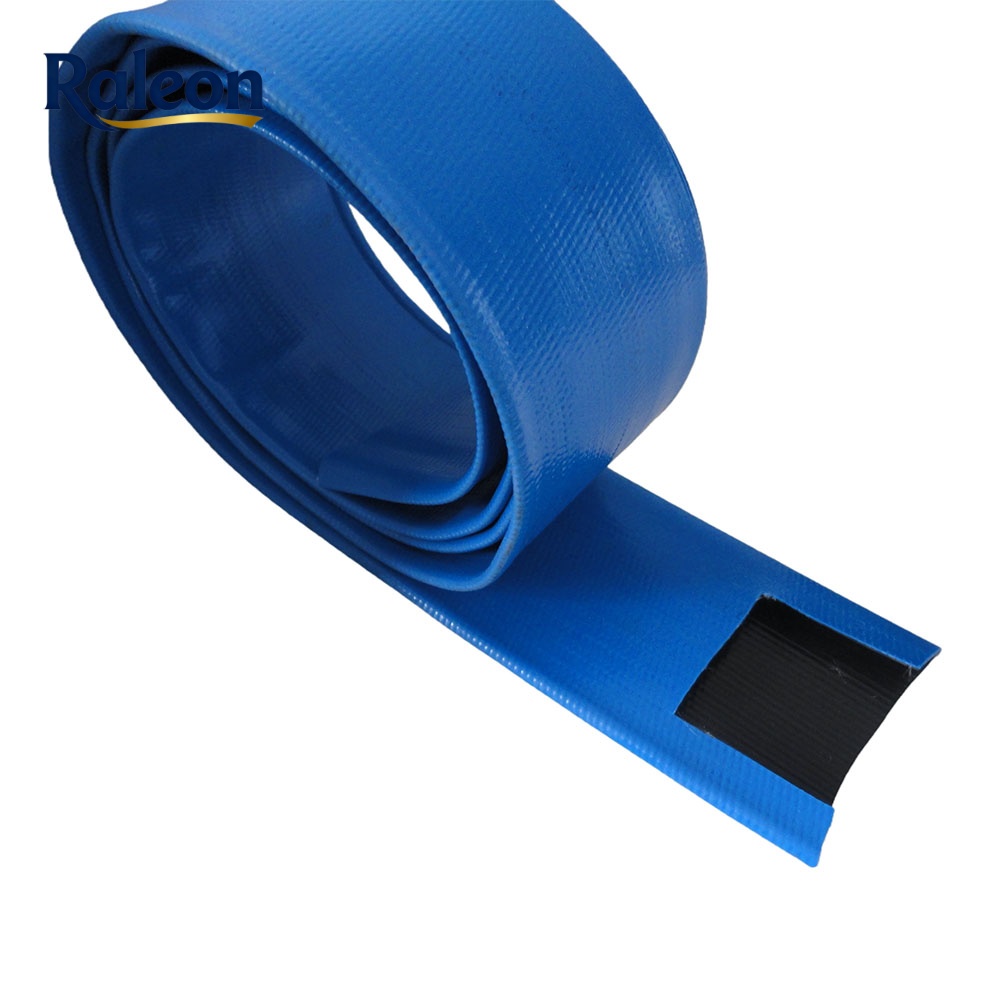

Double Layer PVC Layflat Hose is a once-molded, high-strength hose designed for agricultural irrigation and water discharge under strong sunlight conditions. Made from premium environmental PVC material, the hose features a double-layer structure for enhanced UV resistance and pressure durability. Its lightweight, flexible design ensures easy handling, while maintaining long service life even under harsh outdoor use—especially suitable for Middle East climates.
● Double-layer design, strong UV resistance, ideal for heavy sunlight areas.
● Light weight, high pressure resistance, and long working life.
● Smooth, soft surface with attractive appearance.
● Resistant to acid, alkali, aging, and stretching.
● Non-toxic, odorless, eco-friendly, compliant with REACH standards.
● Temperature range: -5℃ to +65℃.
● Suitable for agricultural irrigation, water discharge, and light industry use.
| Specification: | ||||||||||
| INNER DIAMETER | THICKNESS | OUTER DIAMATER | WORKING PRESSURE | BURST PRESSURE | WEIGHT | ROLL | HS CODE | |||
| INCH | MM | MM | MM | BAR | PSI | BAR | PSI | G/M | M | |
| 1″ | 25 | 1.5 | 28 | 4 | 60 | 12 | 180 | 170 | 100 | 39173900 |
| 1-1/2″ | 40 | 1.25 | 42.5 | 4 | 60 | 12 | 180 | 210 | 100 | 39173900 |
| 2″ | 51 | 1.3 | 53.6 | 4 | 60 | 12 | 180 | 280 | 100 | 39173900 |
| 2″ | 51 | 1.55 | 54.1 | 8 | 120 | 24 | 360 | 350 | 100 | 39173900 |
| 2-1/2″ | 65 | 1.3 | 67.6 | 4 | 60 | 12 | 180 | 360 | 100 | 39173900 |
| 3″ | 76 | 1.4 | 78.8 | 4 | 60 | 12 | 180 | 450 | 100 | 39173900 |
| 3″ | 76 | 1.9 | 79.8 | 6 | 90 | 18 | 270 | 650 | 100 | 39173900 |
| 4″ | 103 | 1.45 | 105.9 | 4 | 60 | 12 | 180 | 650 | 100 | 39173900 |
| 4″ | 103 | 2.4 | 107.8 | 8 | 120 | 24 | 360 | 1080 | 100 | 39173900 |
| 6″ | 153 | 1.8 | 156.6 | 3 | 45 | 9 | 135 | 1200 | 100 | 39173900 |
| 6″ | 153 | 2.5 | 158 | 6 | 90 | 18 | 270 | 1700 | 100 | 39173900 |
| 8″ | 203 | 2.5 | 208 | 3 | 45 | 9 | 135 | 2300 | 100 | 39173900 |
