Weifang Raleon Plastic Co., Ltd.
MOQ : 100 pcs each type
Delivery Time : 15–30 days (according to order quantity)
Port : Qingdao,Ningbo , Shanghai
Packaging : Poly bag + carton + pallet or as customer’s request
Payment Terms : T/T, L/C, or negotiable
OEM / ODM : Available
Sample : Available on request
Categories: Hose Couplings

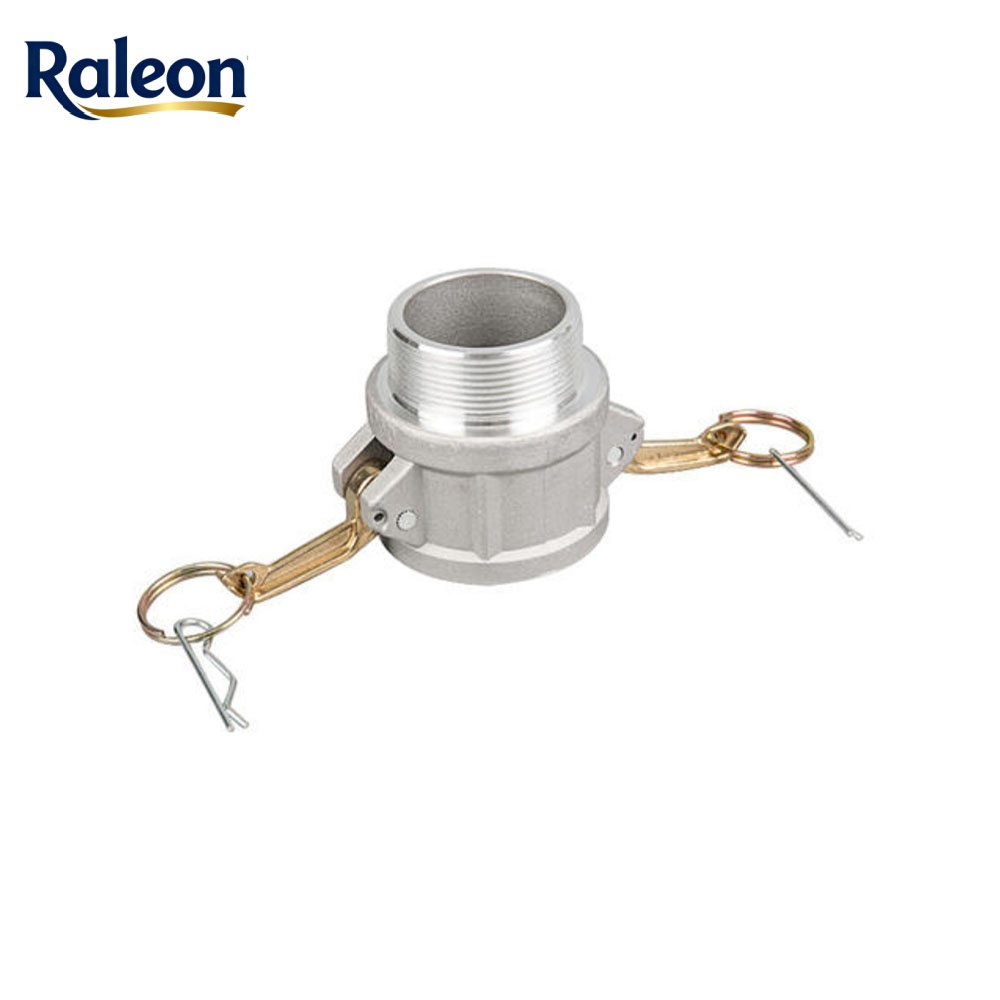

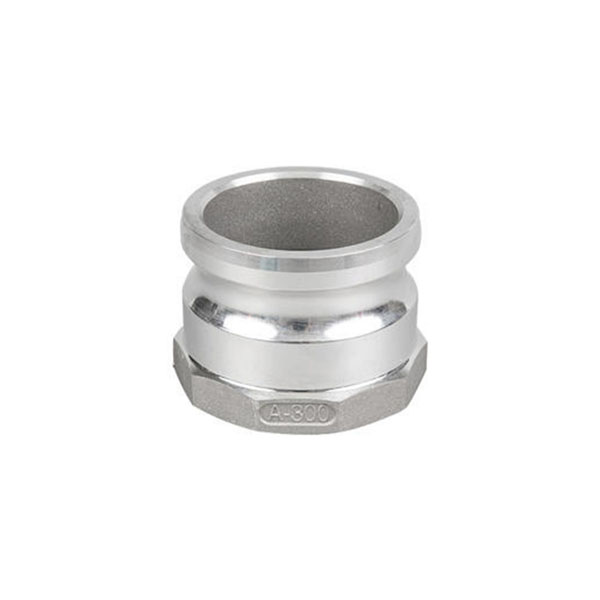

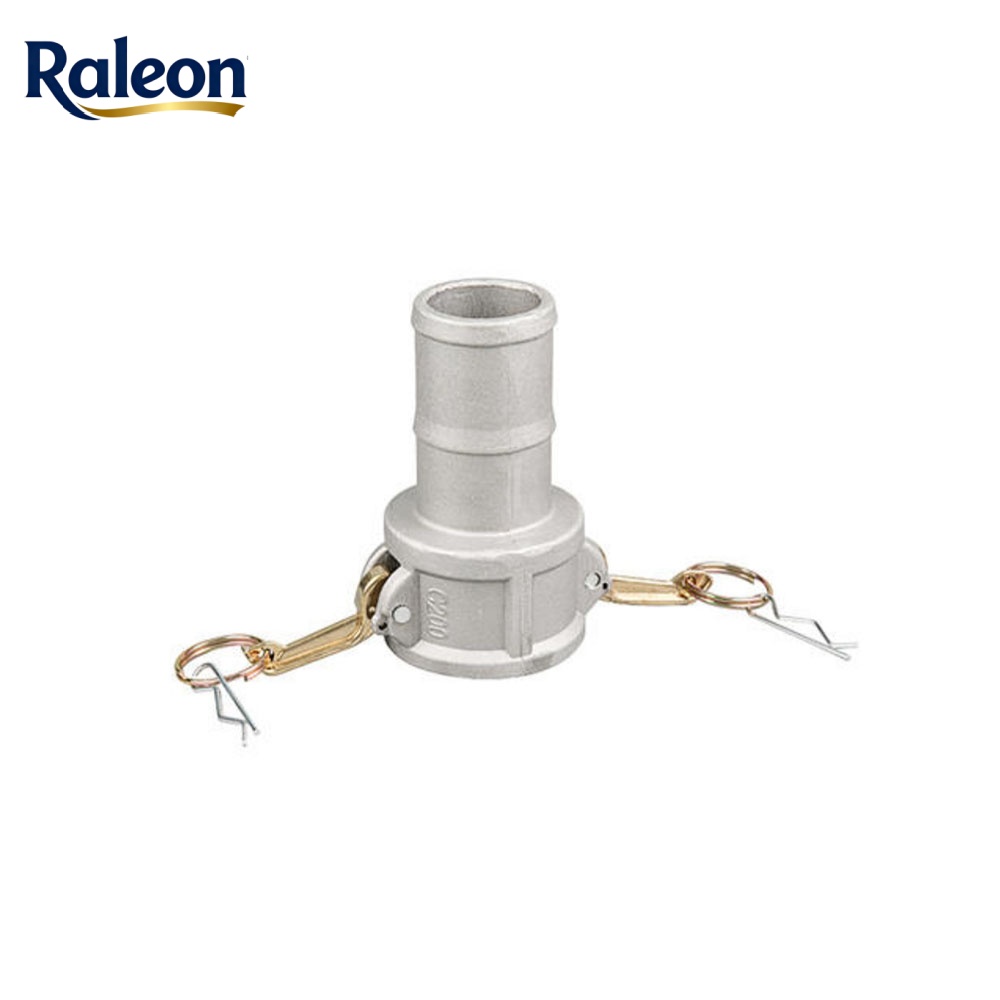

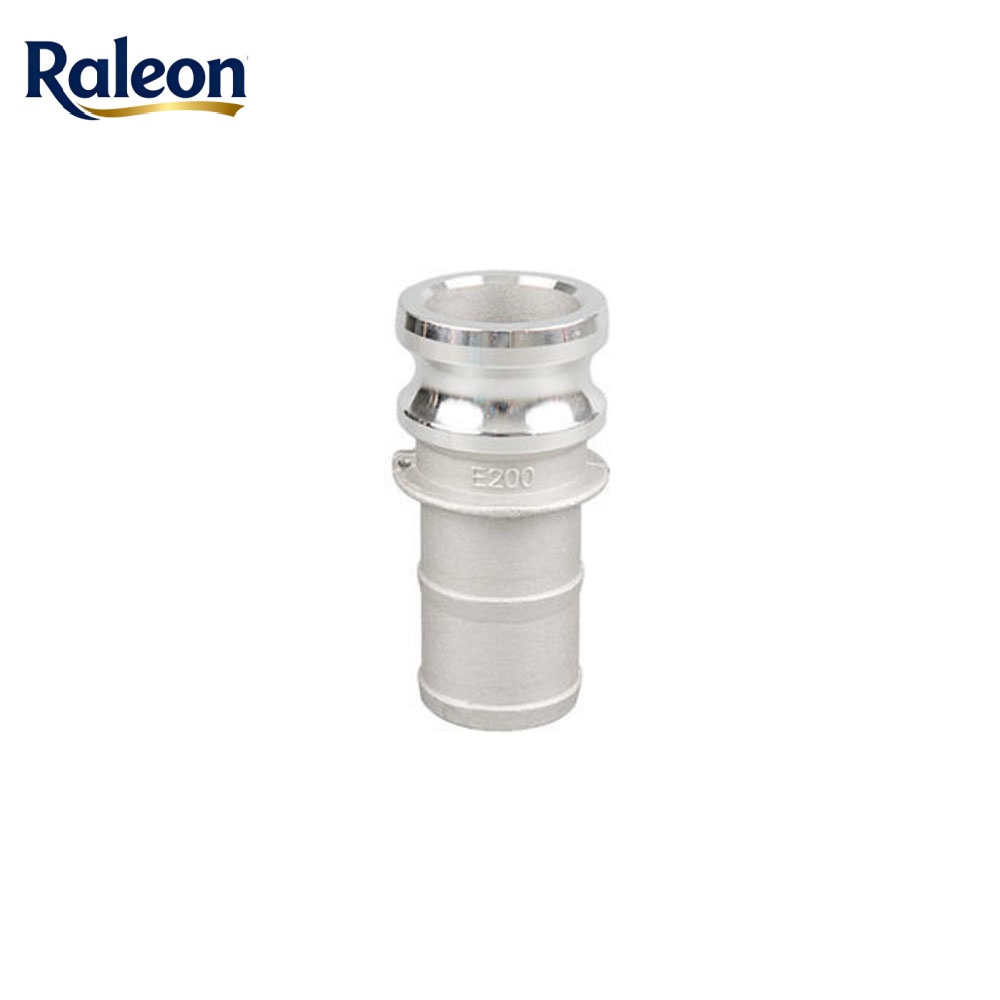

The Aluminium Camlock Coupling, also known as Cam & Groove Coupling, is made to the A-A-59326 (formerly MIL-C-27487) or DIN 2828 standard.
It is lightweight, corrosion-resistant, and cost-effective—ideal for connecting and disconnecting hoses quickly in chemical, oil and gas, mining, firefighting, agriculture, and tank truck industries.
Manufactured with aluminium alloy by precision casting and sand blasting surface treatment, it provides a smooth appearance and high durability for long-term use.
Made to A-A-59326 / DIN 2828 standard
Lightweight and corrosion-resistant aluminium alloy
Steel plated pins, rings, and safety clips for firm connection
NBR gasket as standard (EPDM, Viton, PTFE optional)
BSPP / BSPT / NPT threads available
Sand blasted surface for smooth finish and enhanced appearance
Durable and cost-effective, suitable for various industrial uses
Easy and quick connection without tools
| Item | Specification |
| Material | Aluminium |
| Standard | A-A-59326 (MIL-C-27487), DIN 2828 |
| Gasket | NBR (optional: EPDM, Viton, PTFE) |
| Thread | BSPP, BSPT, NPT |
| Pins & Clips | Steel plated |
| Technics | Casting |
| Surface Treatment | Sand Blast |
| Size Range | 1/2” to 6” |
| Working Pressure | Up to 250 psi (depending on size) |
| Temperature Range | -20°C to +80°C |
